GeneSic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive material for the heat sink, and follow the recommended thermal design guidelines. Also, consider derating the device's current and voltage ratings at high temperatures.
GeneSic recommends limiting voltage overshoot to 10% of the maximum rated voltage to prevent damage to the device. Excessive overshoot can lead to reduced lifespan or failure.
Yes, but it's crucial to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing and potential damage.
Handle the device with ESD-safe materials, use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected package. Also, consider adding ESD protection circuits in the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G3R30MT12J Overview

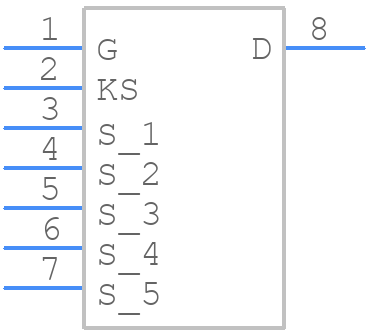

Use the download button to access the G3R30MT12J schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like G3R30,
or try a keyword search, such as Power Field-Effect Transistors
