Omron recommends a minimum PCB spacing of 5mm around the relay module to ensure proper heat dissipation and to prevent electrical noise interference. A recommended PCB layout is available in the Omron application note 'G6K Relay Module PCB Layout Guidelines'.
To ensure reliable operation in high-temperature environments, Omron recommends following the derating curve provided in the datasheet, using a heat sink if necessary, and ensuring good airflow around the relay module. Additionally, consider using a relay module with a higher temperature rating, such as the G6K-2F-Y-TRDC5-H, which is rated for operation up to 125°C.
The G6K-2F-Y-TRDC5 can handle a maximum surge current of 100A for 10ms, as specified in the Omron datasheet. However, it's essential to consider the specific application requirements and ensure that the relay module is properly sized to handle the expected surge currents.
The G6K-2F-Y-TRDC5 is not certified for use in safety-critical applications, such as those requiring IEC 61508 or ISO 26262 certification. For safety-critical applications, Omron recommends using relay modules specifically designed and certified for such use, such as the G9KA or G9KB series.
To troubleshoot issues with the G6K-2F-Y-TRDC5, Omron recommends following a systematic approach, including: 1) checking the power supply and input voltage, 2) verifying the control signal and wiring, 3) inspecting the relay module for signs of physical damage or overheating, and 4) consulting the Omron application notes and technical support resources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G6K-2F-Y-TRDC5 Overview

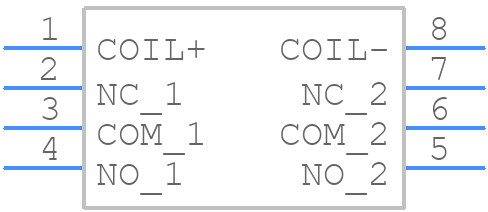

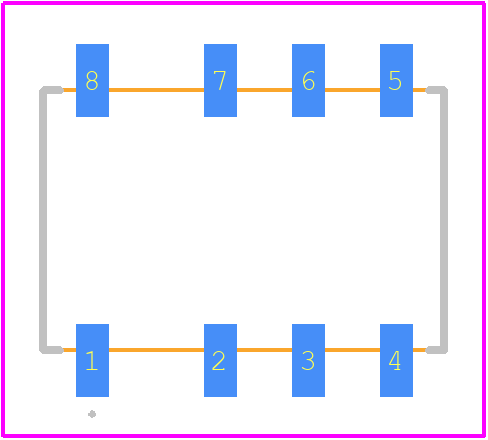

Use the download button to access the G6K-2F-Y-TRDC5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G6K-2,
or try a keyword search, such as Power/Signal Relays
