G8K-27R DC12 - OMRON Electronics

Description: G8K Ultra Miniature Power PCB Relay DC 12 V, SPDT × 2 (1 Form C × 2), 75mA, 160Ω, 900mW

Download G8K-27R DC12 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this G8K-27R DC12 model

Email notifications will be applied after download.

Send part feedback

Symbol

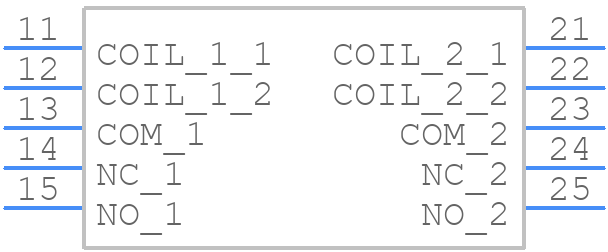

G8K-27R DC12 - OMRON Electronics - PCB symbol

PCB Footprints

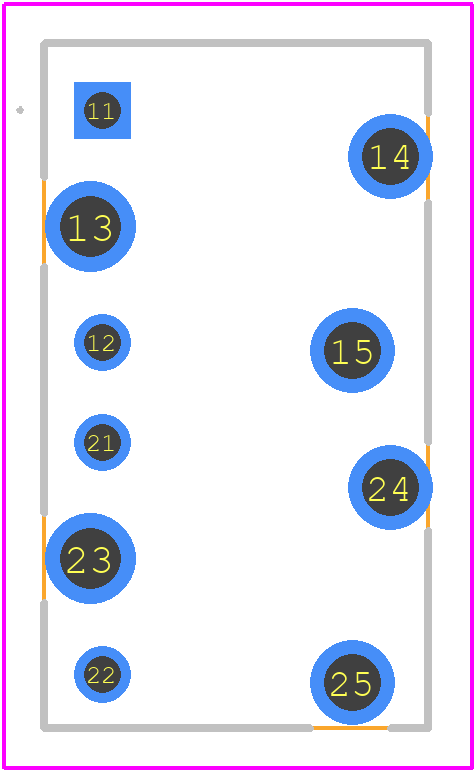

G8K-27R DC12 - OMRON Electronics PCB footprint - Other - Other - G8K-27R DC12-13

3D Models

G8K-27R DC12 - OMRON Electronics - 3D model - Other - G8K-27R DC12-13

Datasheet Download Datasheet
Stock & Prices Price & Stock for G8K-27R DC12
Part Number G8K-27R DC12
Manufacturer OMRON Electronics
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - G8K-27R DC12-13
Released Date Jul 15, 2022
Last Modified Date Sep 19, 2024 9:46 AM UTC
Pinout / Pin List Click Here (Member Only)

G8K-27R DC12 Details

Manufacturer Part Number:
G8K-27R DC12
Manufacturer:
OMRON Electronic Components

Trust Checks

Community Provided

System Verified

Community Approved

G8K-27R DC12 Overview

Use the download button to access the G8K-27R DC12 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like G8K-2, or try a keyword search, such as Headers and Edge Type Connectors||Mains Power Connectors||DC Power Plugs or Jacks
