GA3372-ALD footprint, schematic symbol and 3D model by COILCRAFT

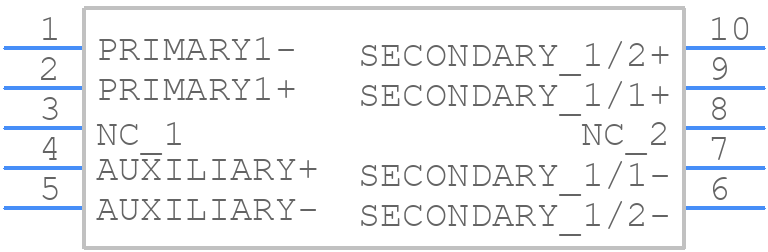

Symbol

click to zoom

PCB Footprints

GA3372-ALD - COILCRAFT PCB footprint - Other - Other - GA3372-ALD-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GA3372-ALD
Part Number GA3372-ALD
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - GA3372-ALD-1
Released Date Jul 17, 2025
Last Modified Date Dec 4, 2025 1:39 AM UTC
Pinout / Pin List Click Here (Member Only)

GA3372-ALD Details

Manufacturer Part Number:
GA3372-ALD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.1
Additional Feature:
HEIGHT DIM INCLUDE TERMINAL ALSO
Height:
12.7 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
JESD-609 Code:
e2
Length:
13.46 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Output Voltage 2:
5 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
13 W
Primary Inductance:
102 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver (Sn/Ag)
Transformer Type:
SMPS TRANSFORMER
Width:
13 mm

GA3372-ALD Frequently Asked Questions (FAQs)

Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is designed to minimize parasitic inductance and ensure reliable assembly.
The GA3372-ALD is rated for operation up to 125°C, but derating may be necessary for temperatures above 105°C. Consult Coilcraft's application notes for guidance on high-temperature operation.
The GA3372-ALD is a shielded inductor, and proper magnetic shielding is critical to its operation. Coilcraft recommends using a ground plane or shield layer on the PCB to minimize magnetic radiation and ensure reliable operation.
The maximum current rating for the GA3372-ALD is dependent on the operating frequency and temperature. Consult the datasheet and application notes for guidance on current rating and derating.
The GA3372-ALD is designed for high-frequency operation, but its performance may degrade above 100 MHz. Consult Coilcraft's application notes for guidance on high-frequency operation and potential derating.
