GA3460-BL - COILCRAFT

Description: Audio Transformers / Signal Transformers GA3460 for LT3751 500V 50A

Download GA3460-BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

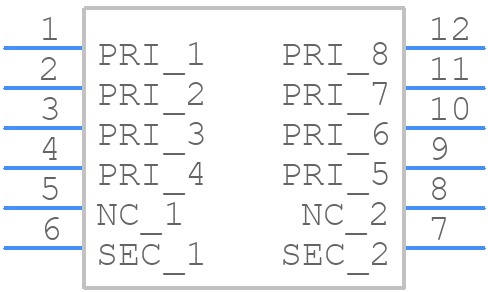

GA3460-BL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

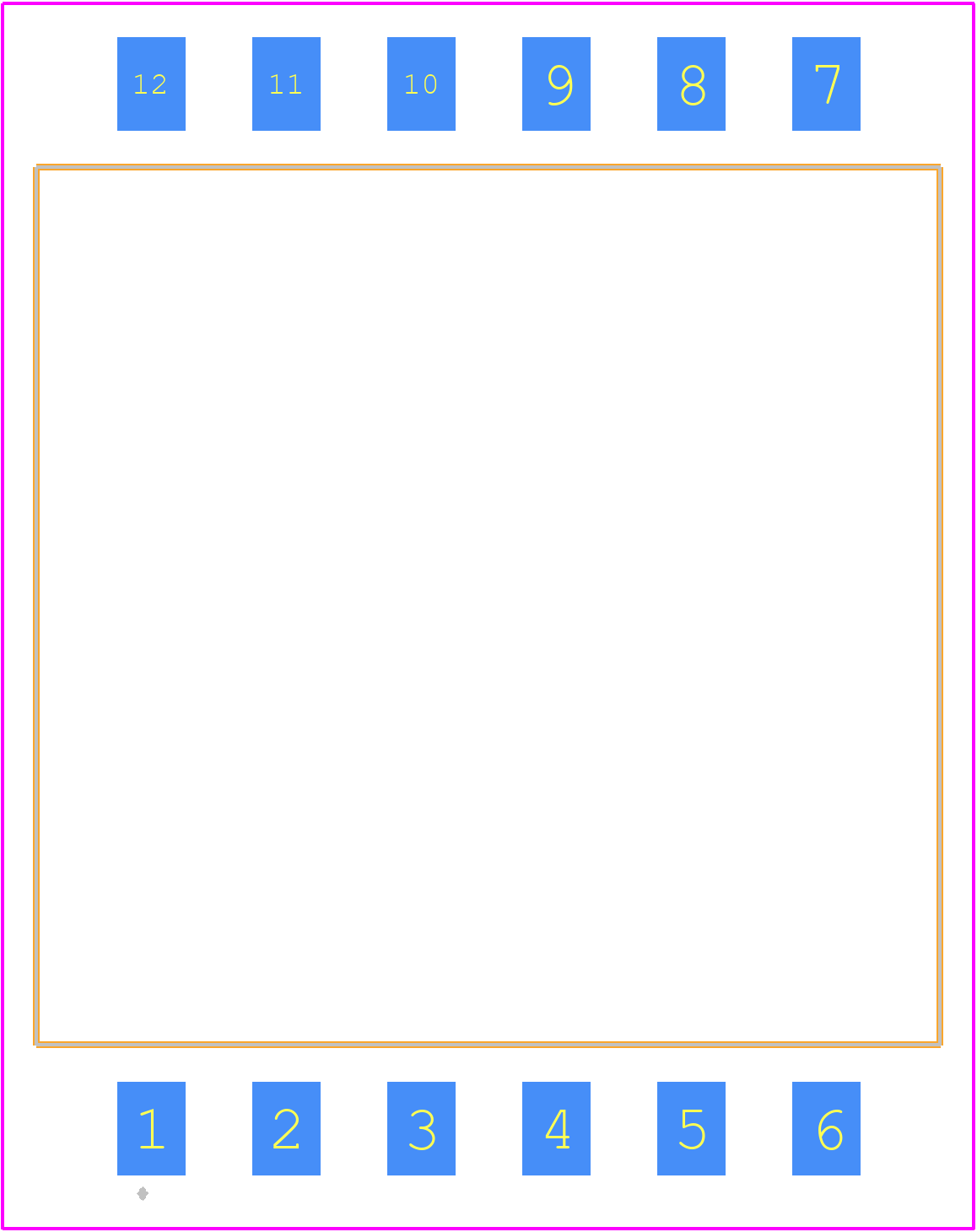

GA3460-BL - COILCRAFT PCB footprint - Other - Other - GA3460-BL-1
click to zoom
3D Models
GA3460-BL - COILCRAFT - 3D model - Other - GA3460-BL-1
click to zoom

GA3460-BL Details

  • Manufacturer Part Number:

    GA3460-BL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Height:

    14 mm

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    12 V

  • Length:

    26.75 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    4

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    500 V

  • Packing Method:

    TRAY

  • Primary Inductance:

    2.5 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    26 mm

GA3460-BL Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the GA3460-BL in their documentation. The recommended land pattern is a rectangular pad with a size of 3.8 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • To minimize the impact of PCB layout and proximity to other components, keep the GA3460-BL at least 1.5 mm away from other components, and avoid running high-frequency signals or power traces under the inductor. Use a solid ground plane under the inductor to reduce electromagnetic interference (EMI).
  • The GA3460-BL has an operating temperature range of -40°C to +125°C. However, the inductor's performance may degrade at extreme temperatures. Consult Coilcraft's documentation for derating guidelines.
  • The GA3460-BL is a commercial-grade inductor, but Coilcraft offers equivalent inductors with higher reliability ratings, such as the GA3460-BL-A or GA3460-BL-V, which are suitable for high-reliability or automotive applications. Consult Coilcraft's documentation for specific details.
  • The optimal number of turns depends on the specific application's requirements. Consult Coilcraft's inductor selection guide or use their online tools to determine the optimal inductor value for your design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GA3460-BL Overview

Use the download button to access the GA3460-BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GA346, or try a keyword search, such as SMPS Transformers
