- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GA3544-BL
- Part Number GA3544-BL
- Manufacturer COILCRAFT
- Pin Count 8
- Part Category Transformer
- Package Category Other

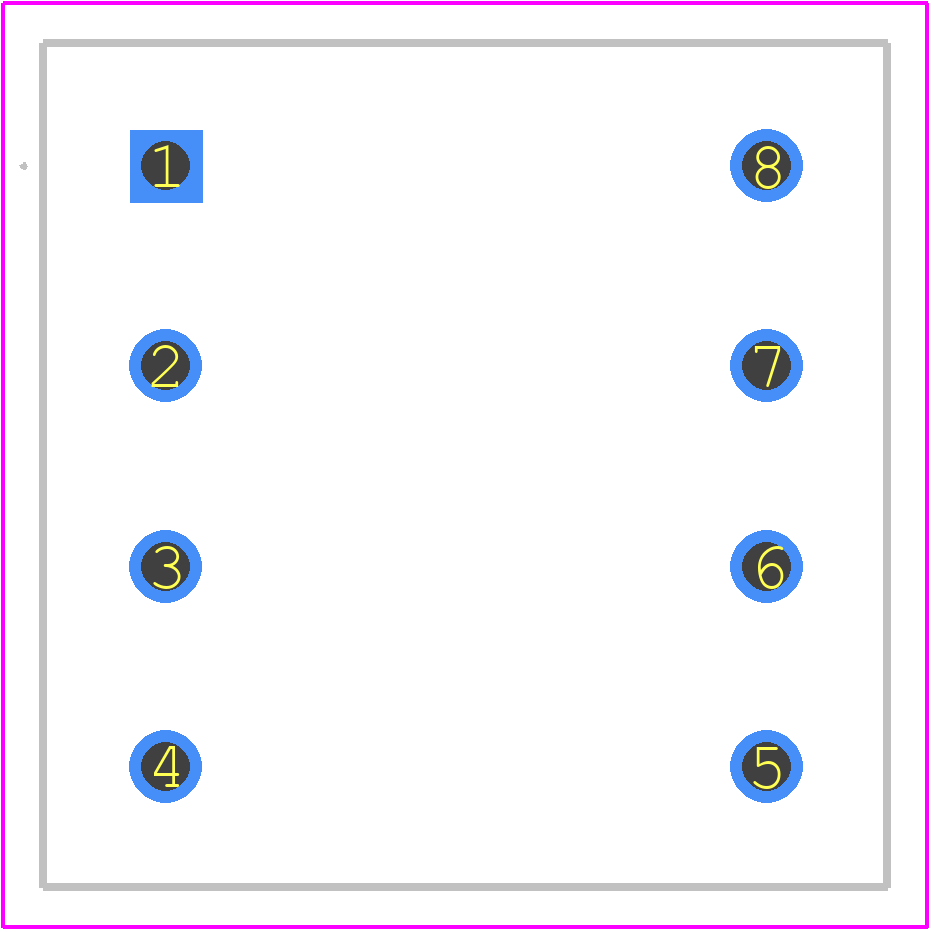

- Footprint Name Other - GA3544-BL-1
- Released Date Oct 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GA3544-BL Details
-
Manufacturer Part Number:
GA3544-BL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6
-
Height:
17.3 mm
-
JESD-609 Code:
e2
-
Length:
21.1 mm
-
Mounting Feature:
THROUGH HOLE MOUNTED
GA3544-BL Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended land pattern for the GA3544-BL in their datasheet, but it's also available as a separate document on their website. The land pattern is designed to ensure optimal performance and reliability of the inductor.
-
The GA3544-BL is rated for operation up to 125°C, but it's essential to consider the derating curves provided in the datasheet to ensure the inductor can handle the specific temperature range of your application.
-
The GA3544-BL, like many inductors, can be sensitive to mechanical stress, which can affect its performance and reliability. To minimize this risk, follow proper handling and mounting procedures, and avoid subjecting the component to excessive mechanical stress or vibration.
-
The SRF of the GA3544-BL is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Coilcraft's inductor simulation software, Coilcraft Simulator, can also be used to estimate the SRF.
-
The GA3544-BL is designed for high-frequency applications, but its performance may degrade at very high frequencies. Check the datasheet's frequency characteristics and consider using Coilcraft's simulation software to ensure the inductor meets your specific application requirements.
Trust Checks
Community Provided
System Verified
Community Approved
GA3544-BL Overview

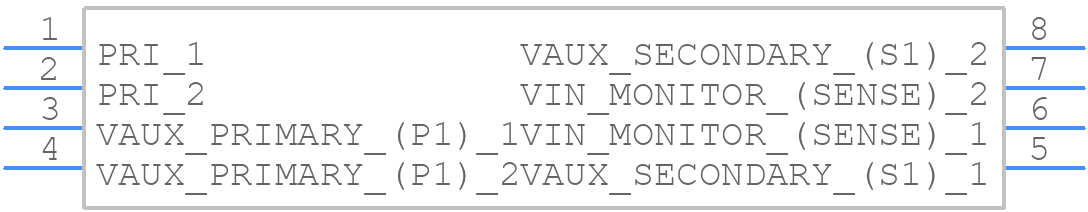

Use the download button to access the GA3544-BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GA354,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
