GAN039-650NBBA - Nexperia

GAN039-650NBBA Details

• Manufacturer Part Number:

  GAN039-650NBBA

• Part Life Cycle Code:

  Active

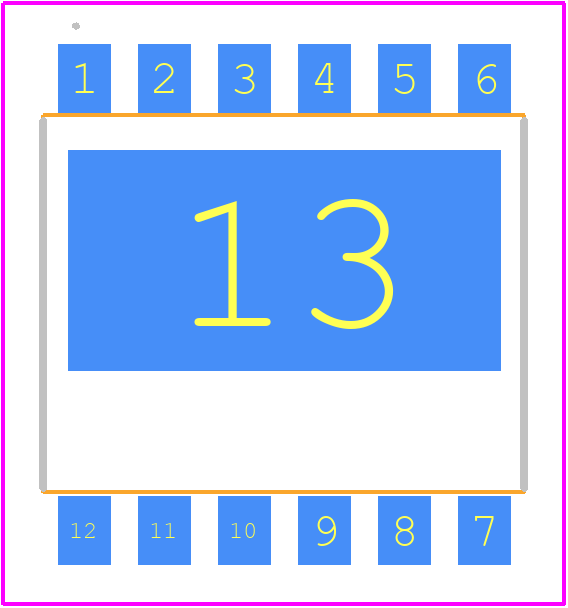

• Package Description:

  SOT-8000, 12 PIN

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-07-31

• Manufacturer:

  Nexperia

• YTEOL:

  7

• Case Connection:

  SOURCE

• Configuration:

  SINGLE WITH BUILT-IN MOSFET AND DIODE

• DS Breakdown Voltage-Min:

  650 V

• Drain Current-Max (ID):

  60 A

• Drain-source On Resistance-Max:

  0.039 Ω

• FET Technology:

  HIGH ELECTRON MOBILITY

• Feedback Cap-Max (Crss):

  5 pF

• JESD-30 Code:

  R-PDSO-G12

• Number of Elements:

  1

• Number of Terminals:

  12

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  300 W

• Pulsed Drain Current-Max (IDM):

  240 A

• Reference Standard:

  AEC-Q101; IEC-60134

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  GALLIUM NITRIDE
