GAP14MDS6T0000/AA - Positronic

Description: 14 Connector Plug, Male Pins Through Hole Gray High Density (HDC, HDI, HPC)

Download GAP14MDS6T0000/AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GAP14MDS6T0000/AA - Positronic - PCB symbol
click to zoom
PCB Footprints

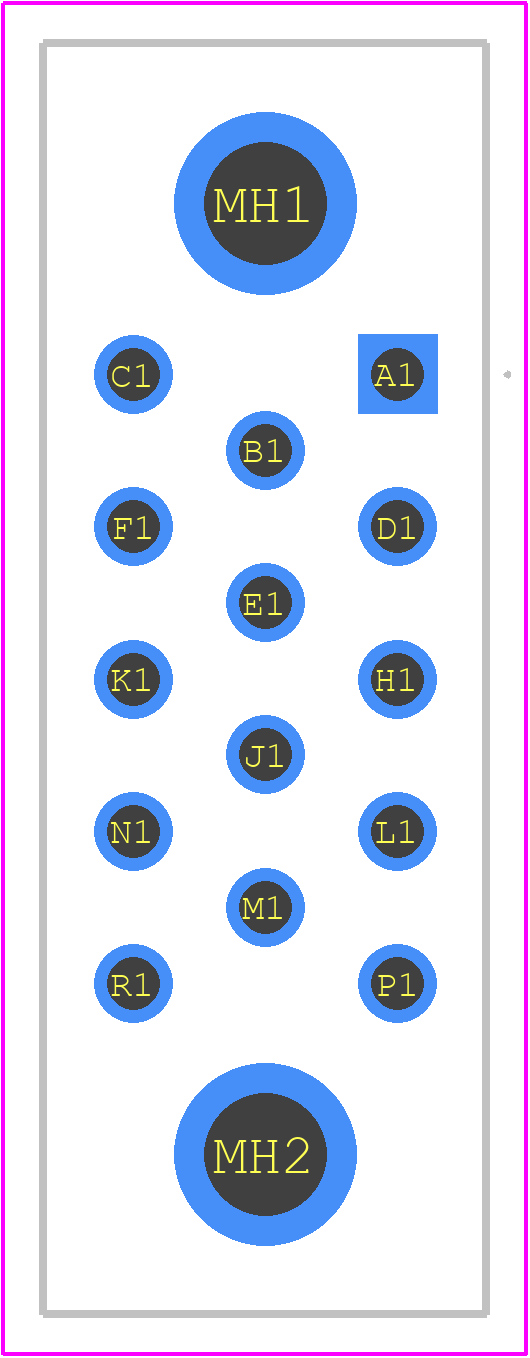

GAP14MDS6T0000/AA - Positronic PCB footprint - Other - Other - GAP14MDS6T0000/AA-1
click to zoom
3D Models
GAP14MDS6T0000/AA - Positronic - 3D model - Other - GAP14MDS6T0000/AA-1
click to zoom

GAP14MDS6T0000/AA Details

  • Manufacturer Part Number:

    GAP14MDS6T0000/AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    8

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED DIALLYL PHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

GAP14MDS6T0000/AA Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the GAP14MDS6T0000/AA is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the GAP14MDS6T0000/AA is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
  • The mating cycle life of the GAP14MDS6T0000/AA is 500 cycles, ensuring reliable connections over a long period of use.
  • While it's possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 24-20 AWG.
