GAPL50M0000/AA footprint, schematic symbol and 3D model by Positronic

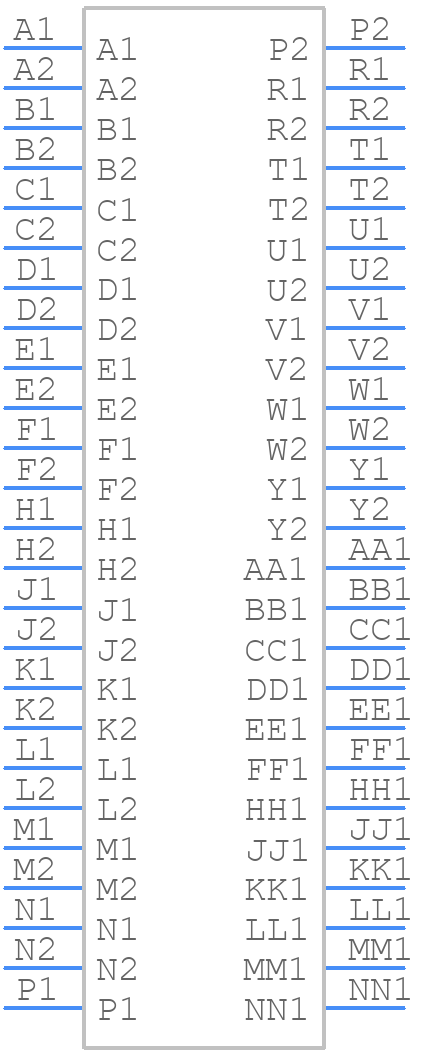

Symbol

click to zoom

PCB Footprints

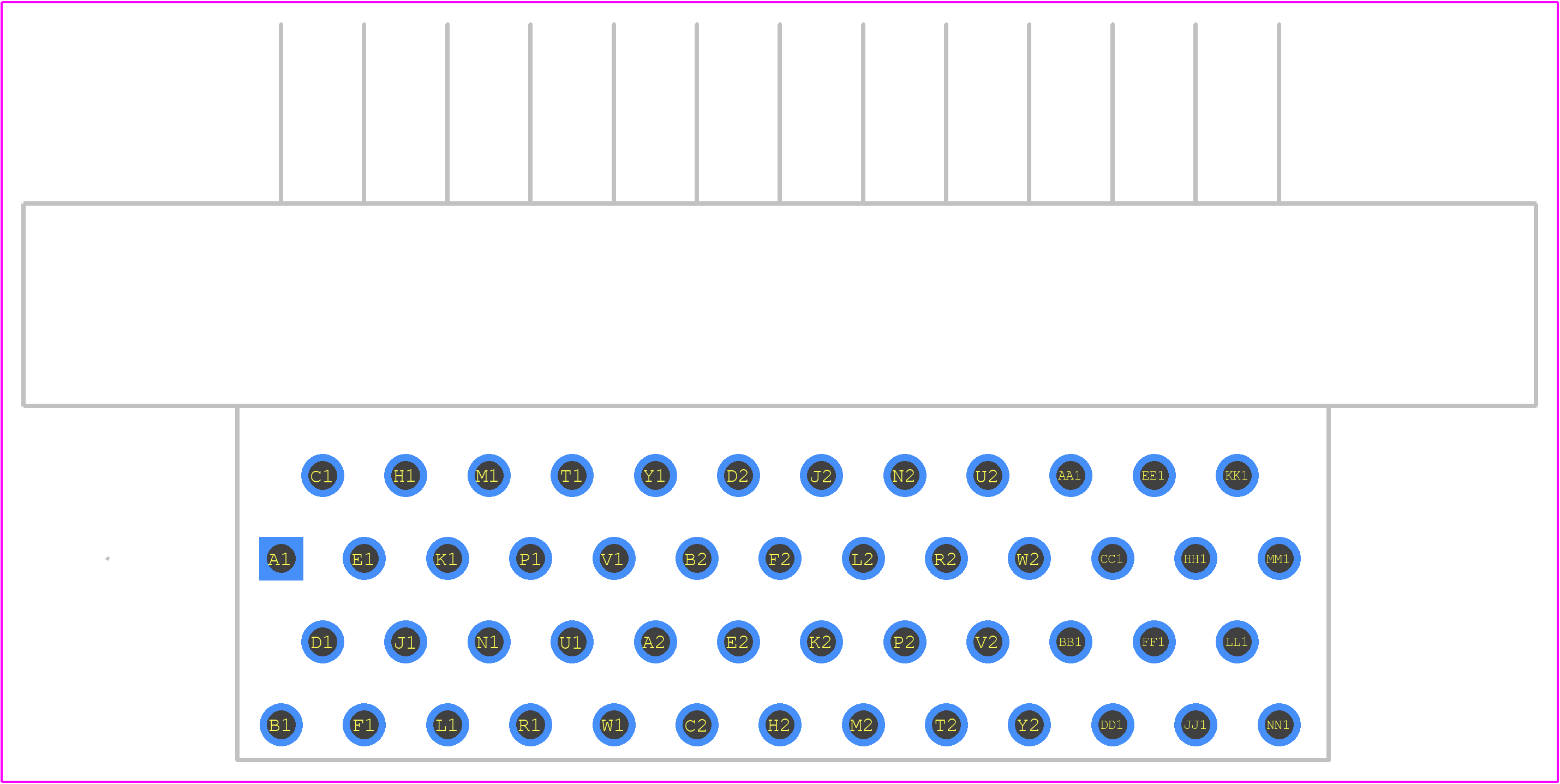

GAPL50M0000/AA - Positronic PCB footprint - Other - Other - GAPL50M0000/AA-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GAPL50M0000/AA
Part Number GAPL50M0000/AA
Manufacturer Positronic
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - GAPL50M0000/AA-2
Released Date Nov 27, 2025
Last Modified Date Dec 4, 2025 11:46 AM UTC
Pinout / Pin List Click Here (Member Only)

GAPL50M0000/AA Details

Manufacturer Part Number:
GAPL50M0000/AA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
Connector Type:
RACK AND PANEL CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

Trust Checks

Community Provided

System Verified

Community Approved

GAPL50M0000/AA Overview

Use the download button to access the GAPL50M0000/AA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GAPL5, or try a keyword search, such as Multiway Rack and Panel Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
