GAPL50M0T0LB/AA footprint, schematic symbol and 3D model by Positronic

Symbol

click to zoom

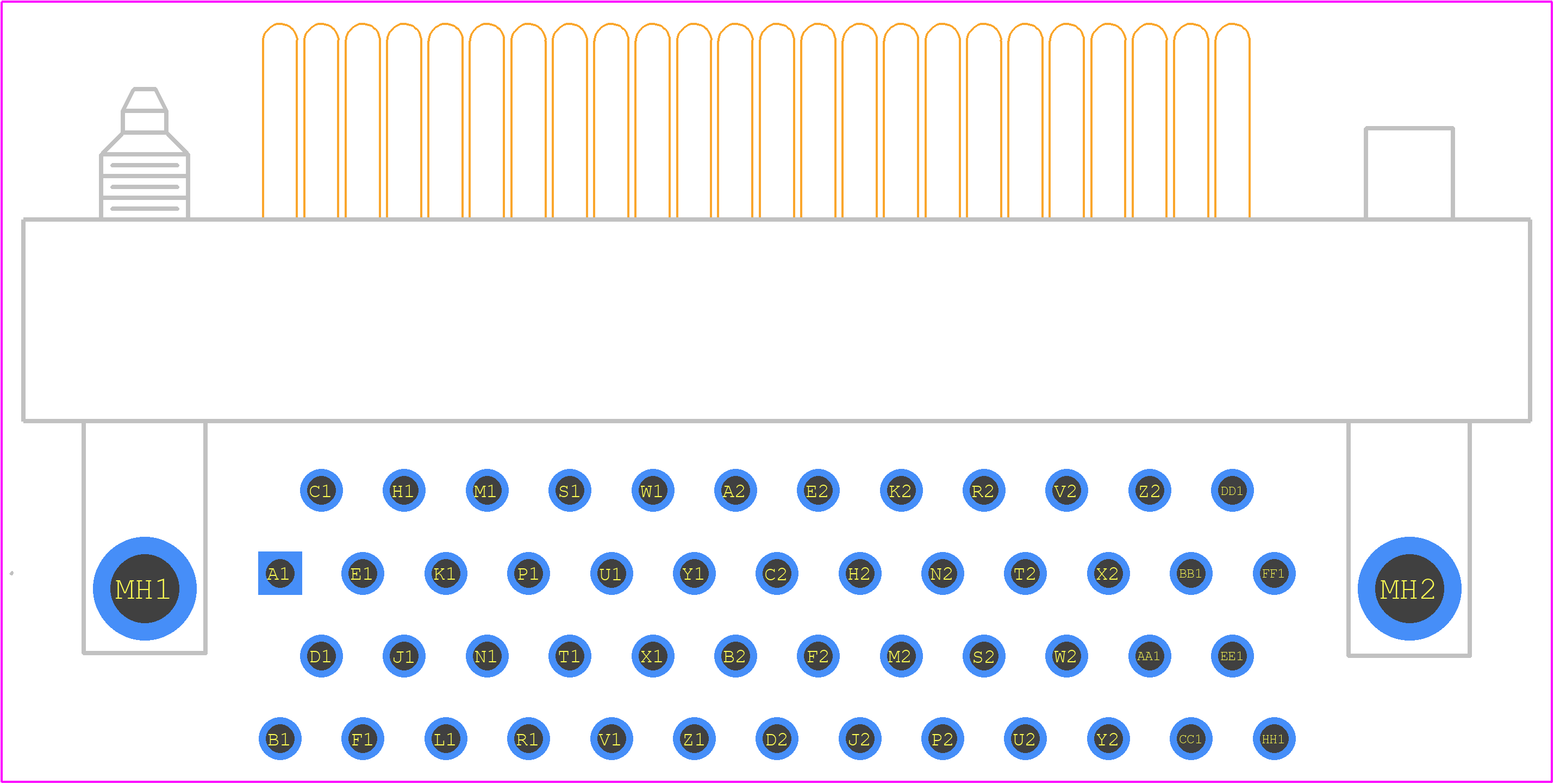

PCB Footprints

GAPL50M0T0LB/AA - Positronic PCB footprint - Other - Other - GAPL50M0T0LB/AA-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GAPL50M0T0LB/AA
Part Number GAPL50M0T0LB/AA
Manufacturer Positronic
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - GAPL50M0T0LB/AA-2
Released Date Apr 4, 2024
Last Modified Date Apr 4, 2024 7:24 AM UTC
Pinout / Pin List Click Here (Member Only)

GAPL50M0T0LB/AA Details

Manufacturer Part Number:
GAPL50M0T0LB/AA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
Connector Type:
RACK AND PANEL CONNECTOR

GAPL50M0T0LB/AA Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs) to ensure secure connections.
Yes, the GAPL50M0T0LB/AA is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
Yes, the GAPL50M0T0LB/AA is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C and humidity rating of 95% RH at 40°C.
The GAPL50M0T0LB/AA has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
While the datasheet specifies 24 AWG wire, the GAPL50M0T0LB/AA can accommodate wire sizes ranging from 20 AWG to 28 AWG, but consult Amphenol Positronic for specific guidance.

Trust Checks

Community Provided

System Verified

Community Approved

GAPL50M0T0LB/AA Overview

Use the download button to access the GAPL50M0T0LB/AA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GAPL5, or try a keyword search, such as Multiway Rack and Panel Connectors
