GB15JVC - NKK Switches

Description: Pushbutton Switch SPDT Standard, Illuminated Through Hole, Right Angle, Vertical

Download GB15JVC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

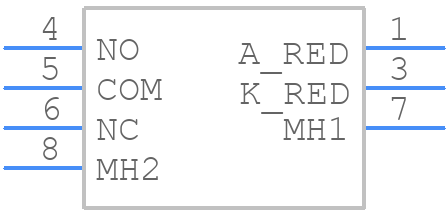

GB15JVC - NKK Switches - PCB symbol
click to zoom
PCB Footprints

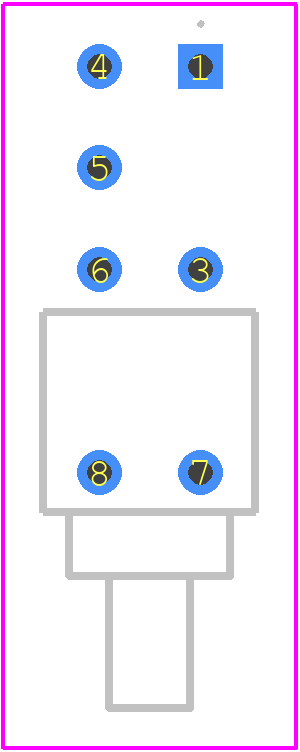

GB15JVC - NKK Switches PCB footprint - Other - Other - GB15JVC-2
click to zoom

GB15JVC Details

  • Manufacturer Part Number:

    GB15JVC

  • Brand Name:

    NKK Switches

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    NKK Switches

  • JESD-609 Code:

    e4

  • Switch Type:

    MINIATURE SWITCH

  • Terminal Finish:

    GOLD

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GB15JVC Overview

Use the download button to access the GB15JVC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like GB15J, or try a keyword search, such as Pushbutton Switches
