GBL10-E3/51 - Vishay

Description: Bridge Rectifer Diode 4A 1KV GBL

Download GBL10-E3/51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBL10-E3/51 - Vishay - PCB symbol
click to zoom
PCB Footprints

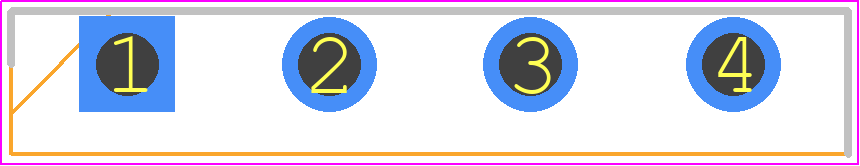

GBL10-E3/51 - Vishay PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - GBL_2020-3
click to zoom
3D Models
GBL10-E3/51 - Vishay - 3D model - Transistor Outline, Vertical - GBL_2020-3
click to zoom

GBL10-E3/51 Details

  • Manufacturer Part Number:

    GBL10-E3/51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, CASE GBL, 4 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Breakdown Voltage-Min:

    1000 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • JESD-30 Code:

    R-PSIP-T4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

GBL10-E3/51 Frequently Asked Questions (FAQs)

  • The recommended storage condition for GBL10-E3/51 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • Yes, the GBL10-E3/51 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure reliable operation.
  • To prevent ESD damage, handle the GBL10-E3/51 with an anti-static wrist strap or mat, and ensure that the workspace is ESD-protected. Avoid touching the component's pins or leads with bare hands.
  • The maximum allowable power dissipation for the GBL10-E3/51 is 1.5 W, but this value may vary depending on the operating conditions and ambient temperature.
  • The GBL10-E3/51 is rated for operation up to 150°C, but the component's performance and reliability may degrade at high temperatures. Consult the datasheet and manufacturer's guidelines for specific temperature ratings and derating factors.
