The recommended land pattern for the GBPC1501W-E4/51 can be found in the Vishay Intertechnologies' application note 'Land Pattern Recommendations for Vishay Rectifiers' (document number 91000). It provides detailed guidelines for PCB layout and pad design to ensure reliable assembly and performance.
While the GBPC1501W-E4/51 has a maximum operating junction temperature of 150°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Consult with a thermal expert or perform thermal simulations to ensure the device operates within safe limits.
The GBPC1501W-E4/51 meets various safety standards, including UL, ENEC, and IEC. However, it's crucial to review the specific certification and compliance requirements for your application. Consult with a safety expert or refer to the relevant standards documents to ensure the device meets the necessary safety standards.
Vishay Intertechnologies recommends following the soldering profile outlined in the JEDEC standard J-STD-020D.1. The recommended profile includes a peak temperature of 260°C, with a dwell time of 10-30 seconds above 255°C.
Yes, the GBPC1501W-E4/51 can be used in a parallel configuration to increase current handling. However, it's essential to ensure that the devices are properly matched, and the circuit is designed to handle the increased current and thermal demands. Consult with an application engineer or refer to Vishay's application notes for guidance on parallel configuration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GBPC1501W-E4/51 Overview

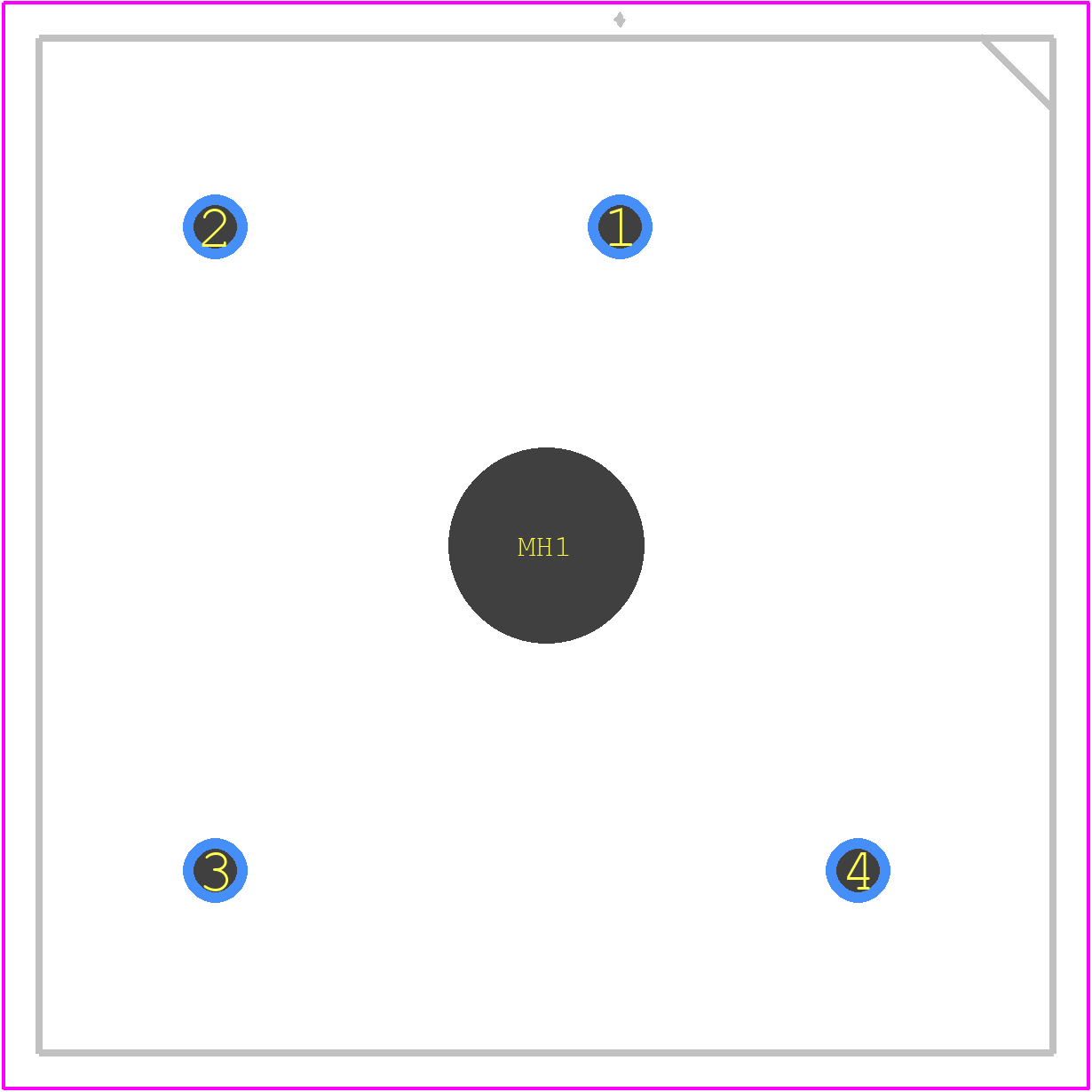

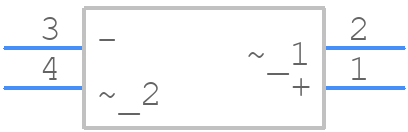

Use the download button to access the GBPC1501W-E4/51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GBPC1,
or try a keyword search, such as Bridge Rectifier Diodes
