Description:Isolated voltage from case to lead over 2500 V; Integrally molded heatsink provided very low thermal resistance for maximum heat dissipation; Terminals Finish Material - Silver (solderable per MIL-STD-202, Method 208 for the wire type GBPC-W package), - Nickel for GBPC package; Surge overload rartings from 300 A to 400 A; UL certified, UL #E258596
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to a solid copper plane on the bottom layer.
Ensure that the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement a thermal management system, such as a heat sink or fan, to keep the device temperature below 125°C. Monitor the device's thermal resistance (RθJA) and adjust the system design accordingly.
The GBPC1506W has an integrated ESD protection diode, but it is still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment.
Yes, the GBPC1506W is qualified for automotive and high-reliability applications. It meets the AEC-Q101 qualification standard and is PPAP (Production Part Approval Process) capable. However, additional testing and validation may be required for specific applications.
Use a systematic approach to troubleshoot issues. Check the device's pinout and connections, ensure proper power supply and decoupling, and verify that the device is operated within its recommended specifications. Use oscilloscopes or logic analyzers to debug signal integrity issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GBPC1506W Overview

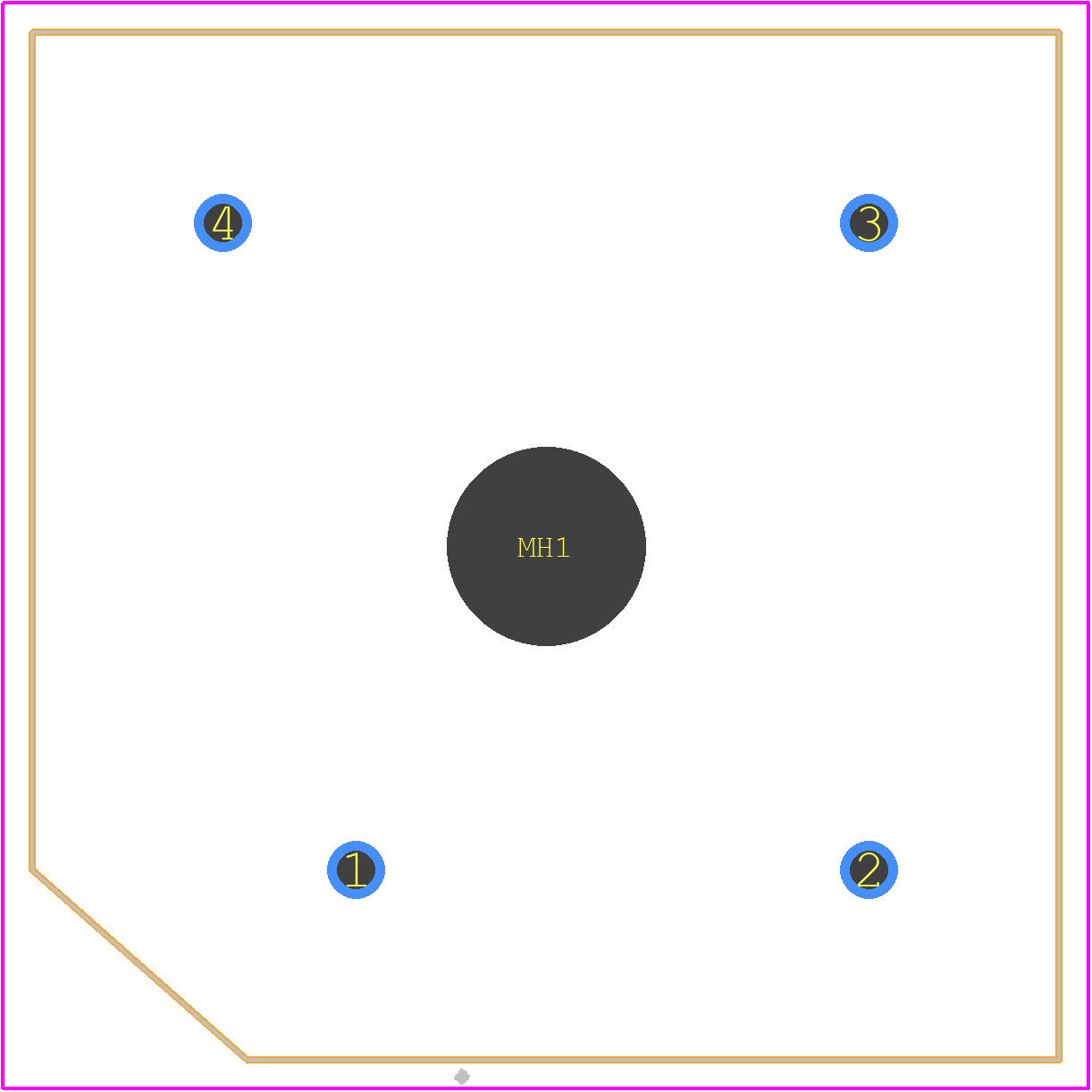

Use the download button to access the GBPC1506W schematic symbol and PCB footprint.
