GBPC1508W - Vishay

GBPC1508W Details

• Manufacturer Part Number:

  GBPC1508W

• Part Life Cycle Code:

  Obsolete

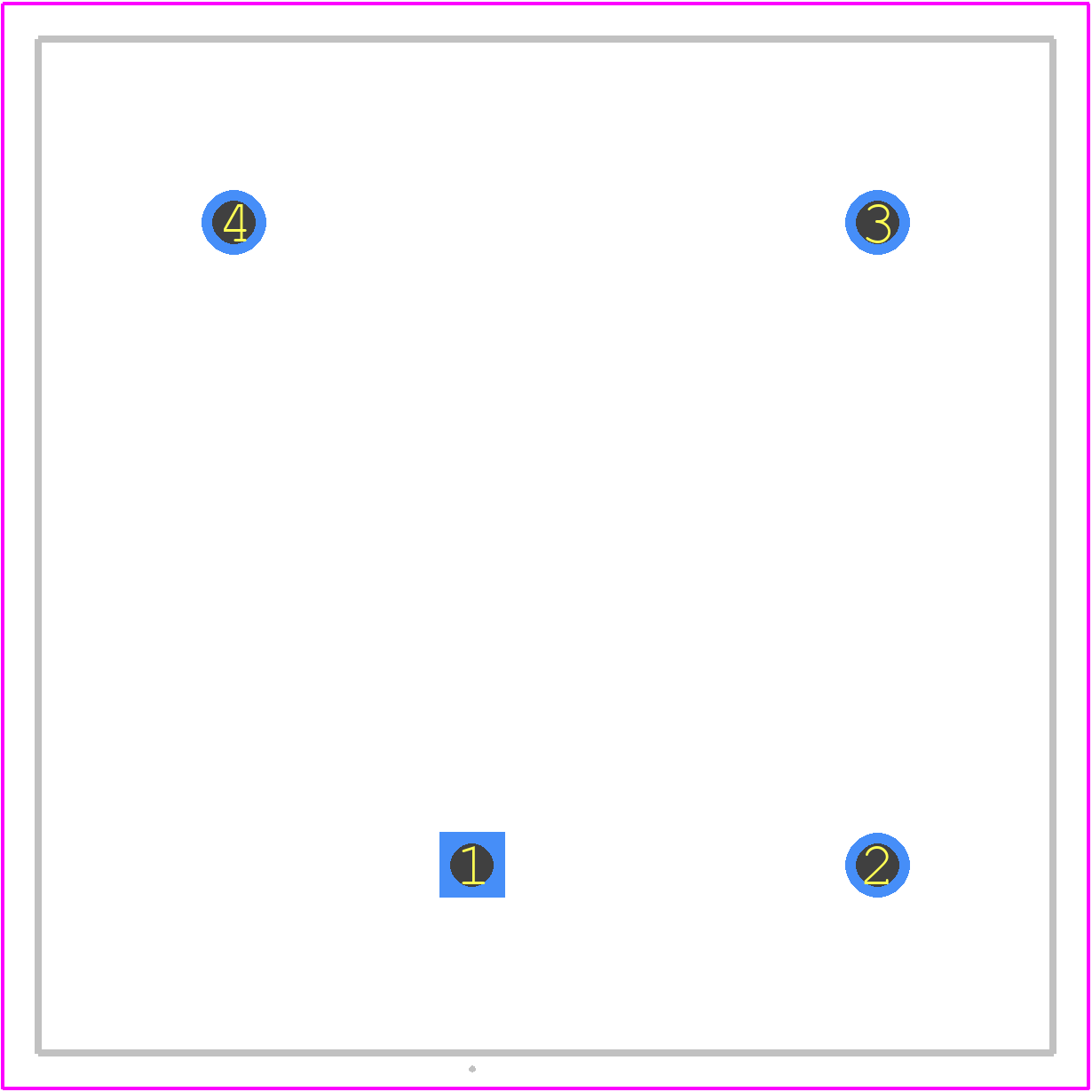

• Package Description:

  GBPC-W, 4 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Vishay Intertechnologies

• YTEOL:

  0

• Breakdown Voltage-Min:

  800 V

• Case Connection:

  ISOLATED

• Configuration:

  BRIDGE, 4 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  BRIDGE RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.1 V

• JESD-30 Code:

  S-PUFM-W4

• JESD-609 Code:

  e0

• Non-rep Pk Forward Current-Max:

  300 A

• Number of Elements:

  4

• Number of Phases:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  15 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Reference Standard:

  UL RECOGNIZED

• Rep Pk Reverse Voltage-Max:

  800 V

• Surface Mount:

  NO

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  WIRE

• Terminal Position:

  UPPER
