Vishay recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
Yes, the GBPC2504W-E4/51 is designed for high-reliability applications, including automotive, industrial, and medical devices. It meets the requirements of AEC-Q101 and is manufactured in accordance with IATF 16949.
The GBPC2504W-E4/51 is rated for operation up to 150°C (302°F) and is suitable for high-temperature applications. However, the device's electrical characteristics may degrade at elevated temperatures, so it's essential to consult the datasheet and application notes for specific guidance.
Yes, the GBPC2504W-E4/51 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The typical power dissipation of the GBPC2504W-E4/51 is 250 W, but this value can vary depending on the specific application and operating conditions. It's essential to consult the datasheet and application notes for specific guidance on power dissipation and thermal management.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GBPC2504W-E4/51 Overview

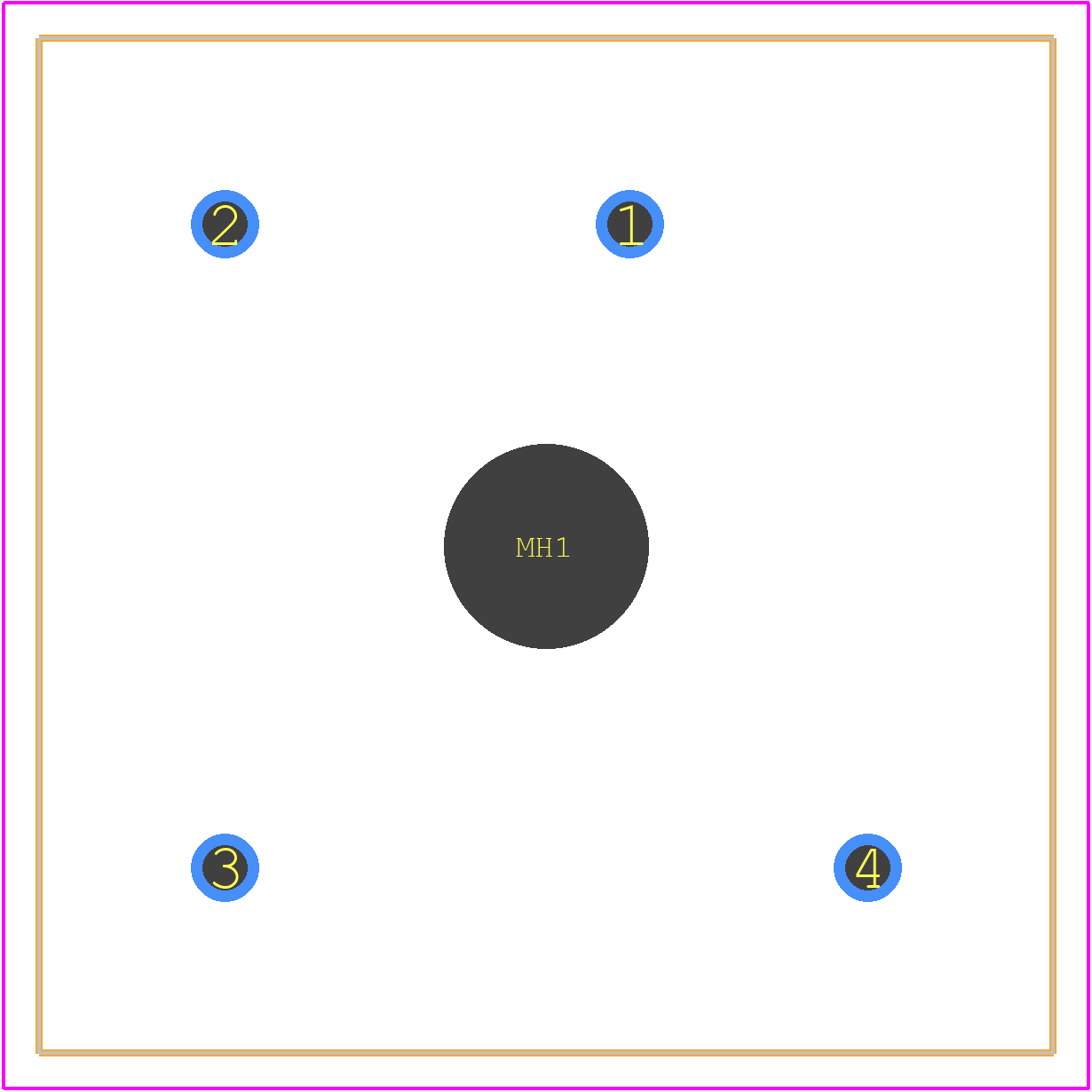

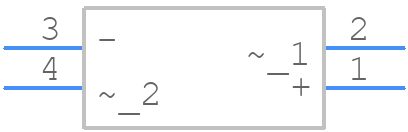

Use the download button to access the GBPC2504W-E4/51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GBPC2,
or try a keyword search, such as Bridge Rectifier Diodes
