GBPC2506W - GeneSiC Semiconductor

Description: BRIDGE RECT 1P 600V 25A GBPC-W

Download GBPC2506W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBPC2506W - GeneSiC Semiconductor - PCB symbol
click to zoom
PCB Footprints

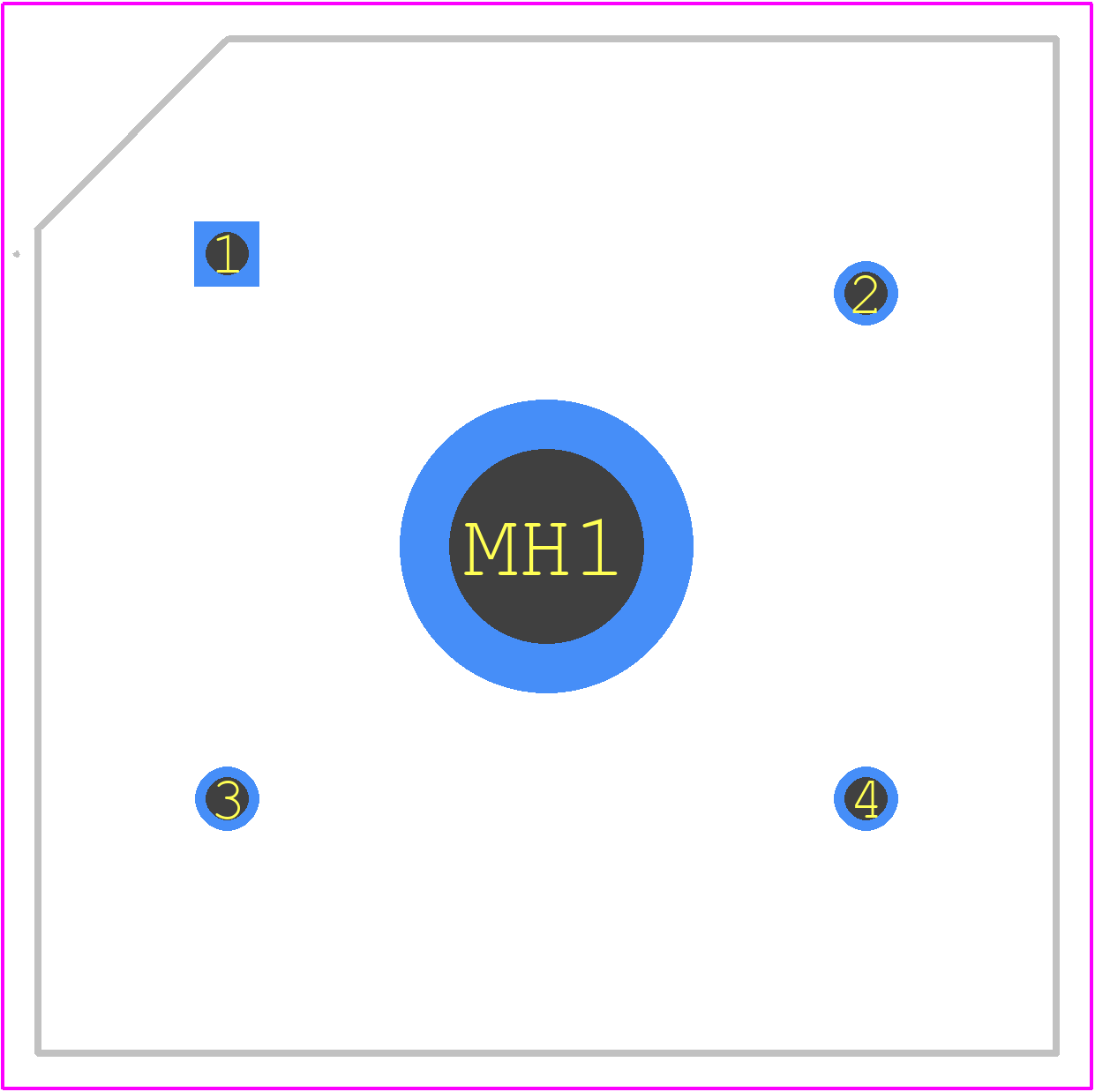

GBPC2506W - GeneSiC Semiconductor PCB footprint - Other - Other - GBPC2506W-3
click to zoom
3D Models
GBPC2506W - GeneSiC Semiconductor - 3D model - Other - GBPC2506W-3
click to zoom

GBPC2506W Details

  • Manufacturer Part Number:

    GBPC2506W

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    GeneSic Semiconductor Inc

  • Breakdown Voltage-Min:

    600 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • Non-rep Pk Forward Current-Max:

    300 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    25 A

  • Rep Pk Reverse Voltage-Max:

    600 V

  • Surface Mount:

    NO

GBPC2506W Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure a minimum of 1 oz copper thickness and a thermal via array under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan. Monitor junction temperature (TJ) and adjust the system design accordingly.
  • A gate driver with a high current capability (>1A) and a low output impedance (<10 ohms) is recommended. Ensure the driver can provide a voltage swing of at least 10V to fully enhance the device.
  • Implement a robust overvoltage protection (OVP) circuit and overcurrent protection (OCP) using a sense resistor and a comparator. Ensure the OVP and OCP circuits can respond quickly to faults (<1us).
  • Implement ESD protection using TVS diodes or ESD arrays at the input and output pins. Ensure the protection devices can handle the maximum expected ESD voltage and current.
