GBPC2510W - GeneSiC Semiconductor

Description: Bridge Rectifiers 1000V 25A Si Bridge Rectifier

Download GBPC2510W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

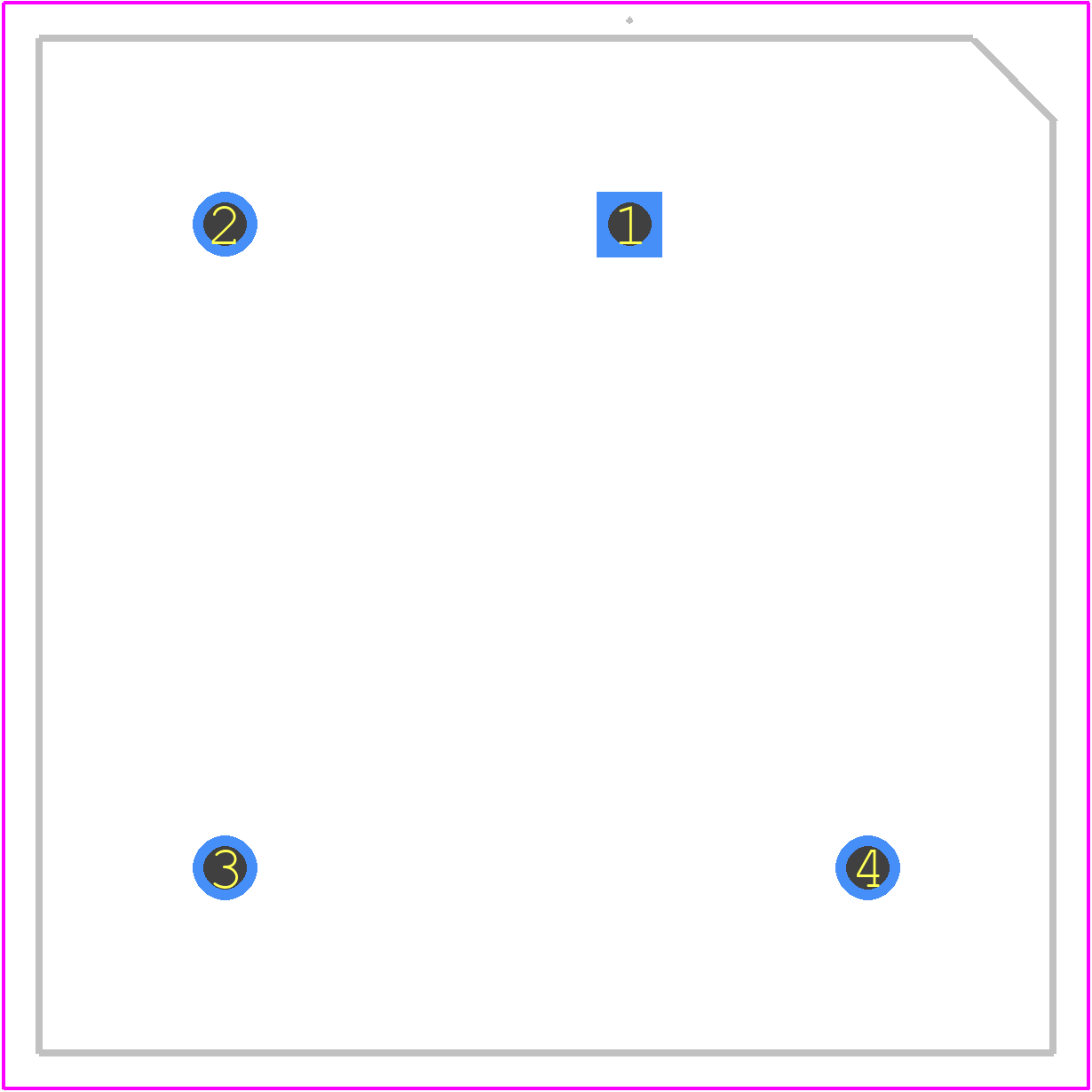

GBPC2510W - GeneSiC Semiconductor PCB footprint - Other - Other - GBPC-W_2023
click to zoom
3D Models
GBPC2510W - GeneSiC Semiconductor  - 3D model - Other - GBPC-W_2023
click to zoom

GBPC2510W Details

  • Manufacturer Part Number:

    GBPC2510W

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    GeneSic Semiconductor Inc

  • Breakdown Voltage-Min:

    1000 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • Non-rep Pk Forward Current-Max:

    300 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    25 A

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Surface Mount:

    NO
