The recommended soldering temperature is 260°C (500°F) for 10-30 seconds. However, it's essential to follow the soldering profile recommended by the manufacturer or industry standards to ensure reliable connections.
Yes, GBPC3501W-E4/51 is a high-reliability component suitable for use in demanding applications, including aerospace and automotive. However, it's crucial to ensure that the component meets the specific requirements and standards of the target industry.
Handle GBPC3501W-E4/51 with care to avoid mechanical stress, and store them in a dry, cool place, away from direct sunlight and moisture. Follow standard ESD handling and storage procedures to prevent damage from electrostatic discharge.
The expected lifespan of GBPC3501W-E4/51 is typically in excess of 10 years under normal operating conditions, with a failure rate of less than 1% per 1,000 hours. However, this may vary depending on the specific application, operating conditions, and environmental factors.
While GBPC3501W-E4/51 is rated for operation up to 150°C, it's not recommended for use in applications above this temperature. Exceeding the maximum operating temperature can lead to reduced performance, reliability issues, or even component failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GBPC3501W-E4/51 Overview

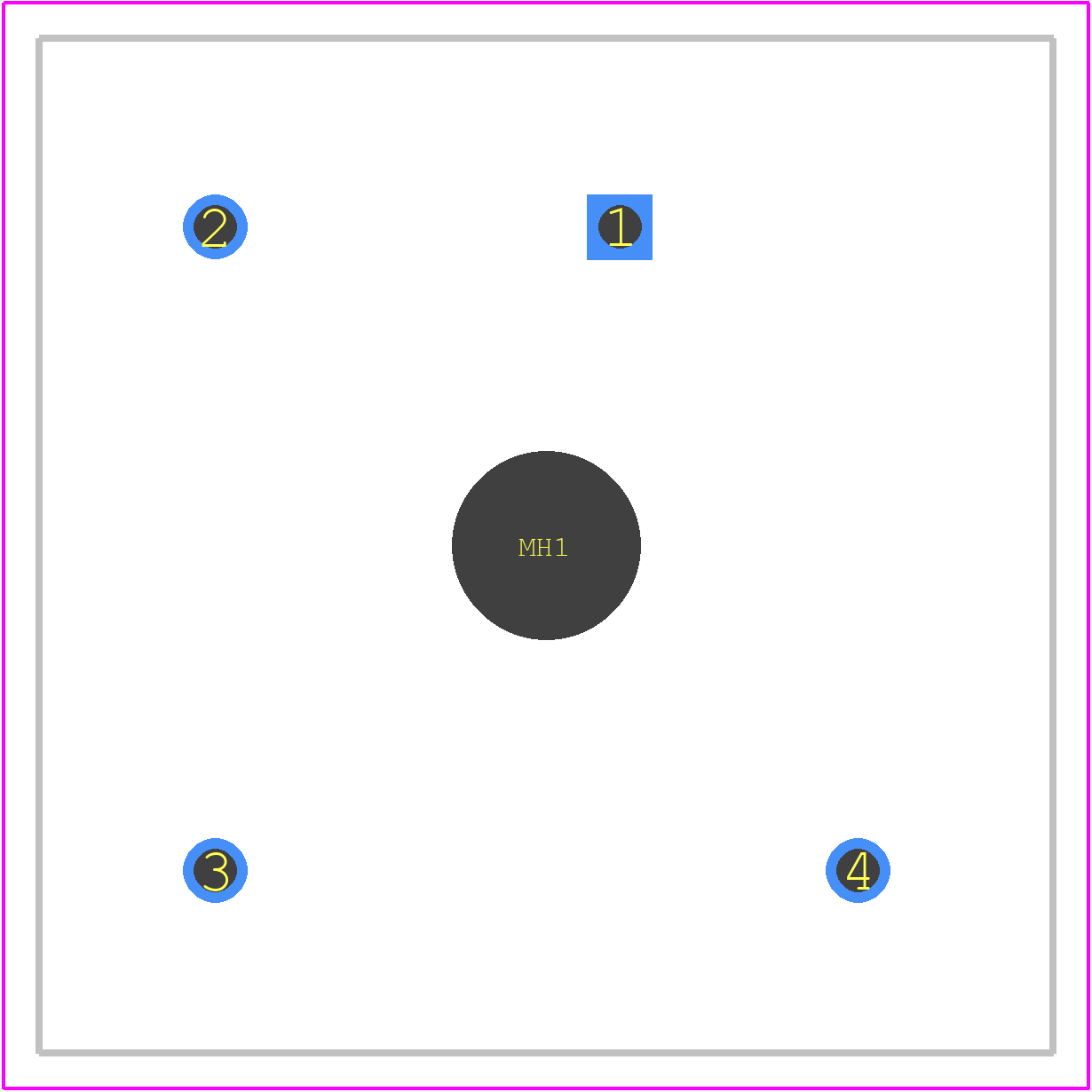

Use the download button to access the GBPC3501W-E4/51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GBPC3,
or try a keyword search, such as Bridge Rectifier Diodes
