GBPC3506W-G - Comchip Technology

Description: Bridge Rectifier Single Phase Standard 600 V Through Hole GBPC-W

Download GBPC3506W-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBPC3506W-G - Comchip Technology - PCB symbol
click to zoom
PCB Footprints

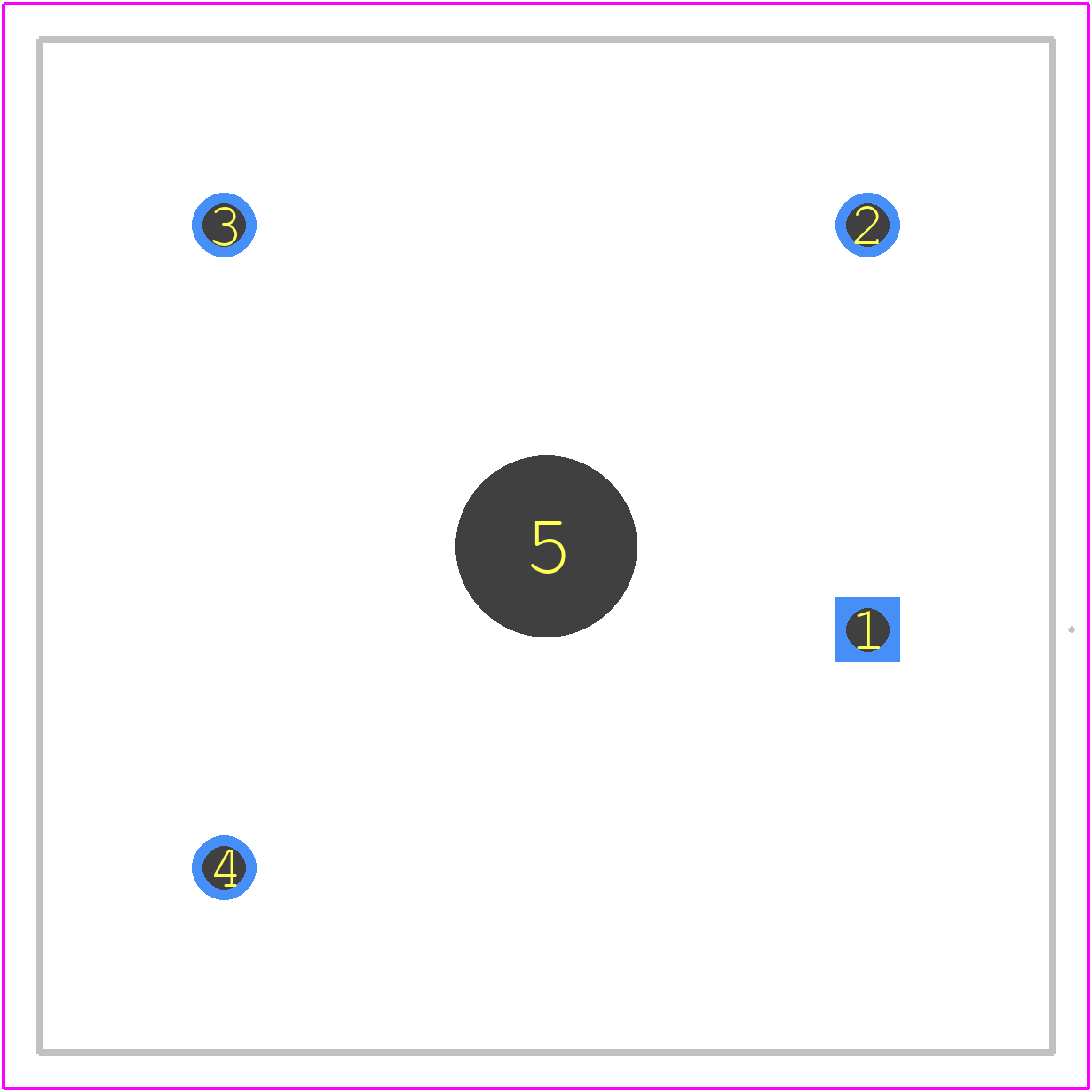

GBPC3506W-G - Comchip Technology PCB footprint - Other - Other - 28.55mm x 28.55mm_2024
click to zoom
3D Models
GBPC3506W-G - Comchip Technology - 3D model - Other - 28.55mm x 28.55mm_2024
click to zoom

GBPC3506W-G Details

  • Manufacturer Part Number:

    GBPC3506W-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Comchip Technology Corporation Ltd

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    600 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-XUFM-W4

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    600 V

  • Surface Mount:

    NO

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

GBPC3506W-G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer PCB with a solid ground plane on the bottom layer can help to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance and electromagnetic interference.
  • The GBPC3506W-G has built-in ESD protection diodes, and latch-up prevention is achieved through careful design and layout of the PCB to minimize parasitic thyristor structures.
  • Yes, the GBPC3506W-G is suitable for high-reliability and automotive applications, but additional testing and validation may be required to meet specific industry standards.
  • Use a systematic approach to troubleshoot, checking for proper power supply, signal integrity, and thermal management, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GBPC3506W-G Overview

Use the download button to access the GBPC3506W-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GBPC3, or try a keyword search, such as Bridge Rectifier Diodes
