GBPC3506W - onsemi

Description: UL certified, UL #E258596; Terminals Finish Material - Silver (solderable per MIL-STD-202, Method 208 for the wire type GBPC-W package), - Nickel for GBPC package; Integrally molded heatsink provided very low thermal resistance for maximum heat dissipation; Isolated voltage from case to lead over 2500 V; Surge overload rartings from 300 A to 400 A

Download GBPC3506W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBPC3506W - onsemi - PCB symbol
click to zoom
PCB Footprints

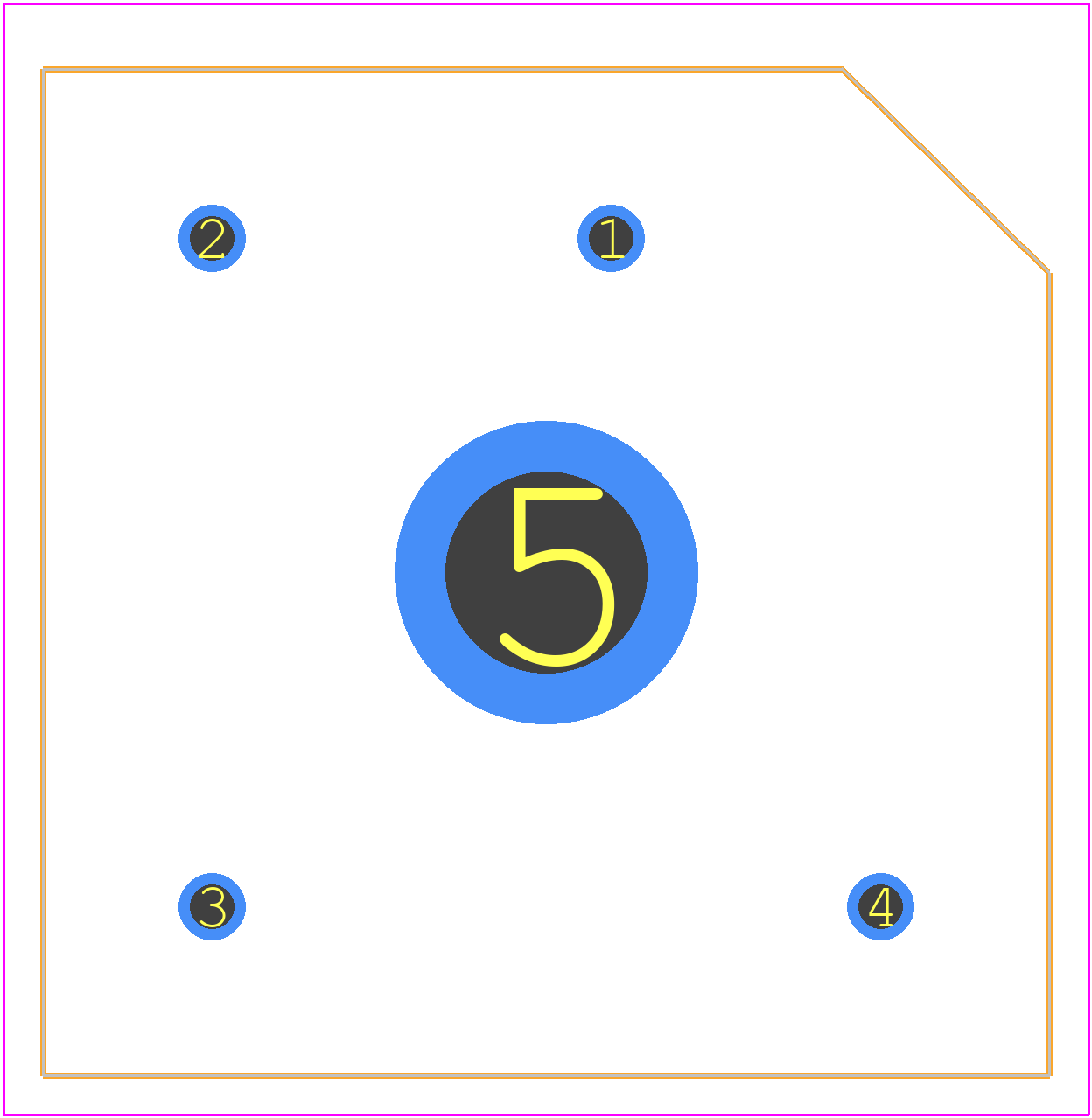

GBPC3506W - onsemi PCB footprint - Other - Other - GBPC3506W-1
click to zoom
3D Models
GBPC3506W - onsemi - 3D model - Other - GBPC3506W-1
click to zoom

GBPC3506W Details

  • Manufacturer Part Number:

    GBPC3506W

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    GBPC4 28.75x28.75x11.10

  • Manufacturer Package Code:

    160AD

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    600 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-PUFM-W4

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Dissipation-Max:

    83.3 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    600 V

  • Reverse Current-Max:

    5 µA

  • Reverse Test Voltage:

    600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Nickel (Ni)

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

GBPC3506W Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's current rating at high temperatures.
  • The device can withstand voltage transients up to 40V for a duration of 100ms. However, it's recommended to use a TVS diode or a voltage clamp to protect the device from voltage spikes.
  • Yes, the GBPC3506W is AEC-Q101 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within its recommended operating conditions and follow the recommended PCB layout and thermal management guidelines.
  • Check for proper PCB layout, thermal management, and input voltage regulation. Verify that the device is operated within its recommended conditions. Use a thermal camera or thermocouple to monitor the device's temperature. Consult the datasheet and application notes for troubleshooting guidelines.
