GBPC3508W-BP - MCC

Description: 35A Single phase Glass passivated bridge rectifier 800 V, package GBPC-W

Download GBPC3508W-BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBPC3508W-BP - MCC - PCB symbol
click to zoom

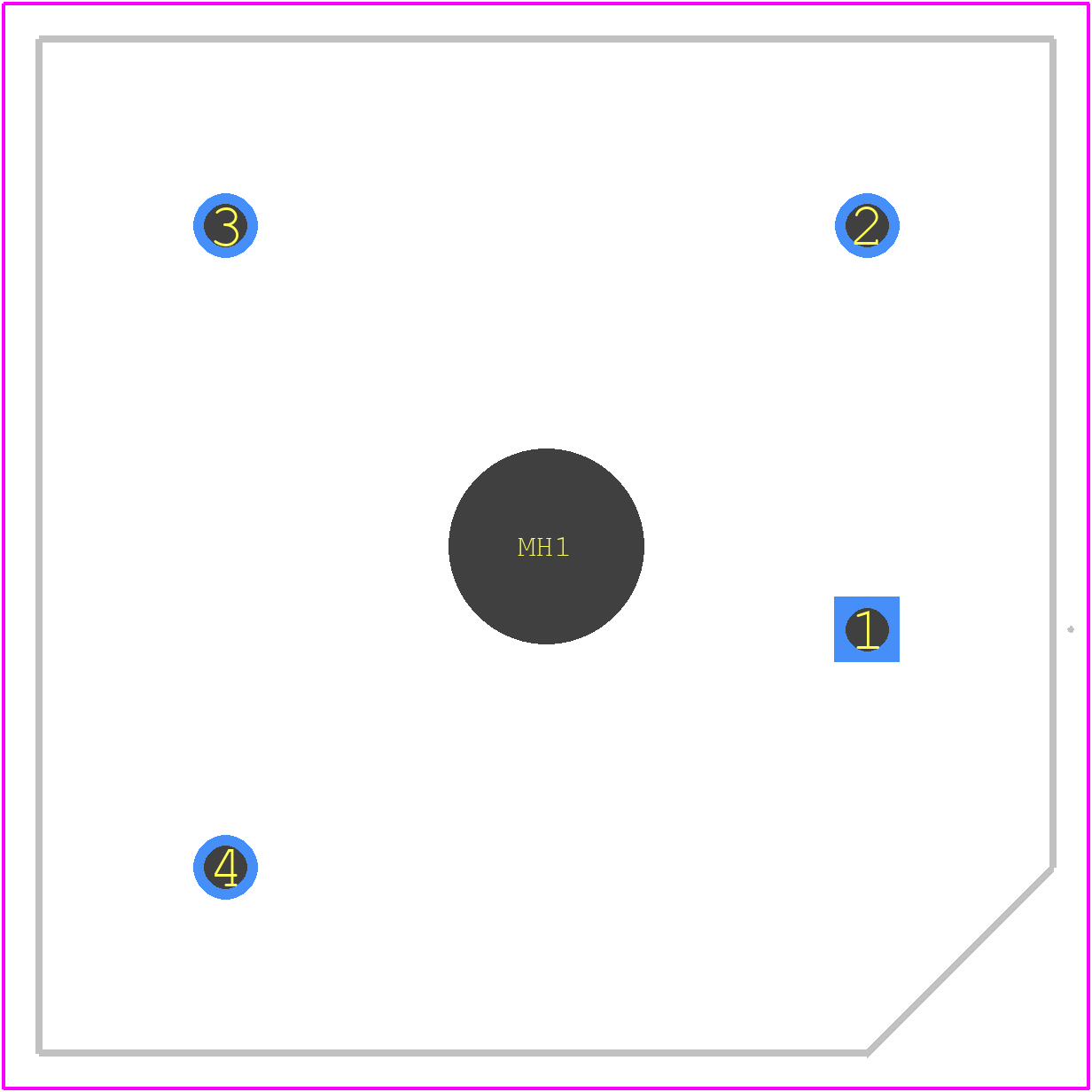

PCB Footprints
GBPC3508W-BP - MCC PCB footprint - Other - Other - GBPC3508W-BP
click to zoom
3D Models
GBPC3508W-BP - MCC - 3D model - Other - GBPC3508W-BP
click to zoom

GBPC3508W-BP Details

  • Manufacturer Part Number:

    GBPC3508W-BP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    800 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-PUFM-W4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    800 V

  • Reverse Current-Max:

    5 µA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    10

GBPC3508W-BP Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the device and use a heat sink if necessary.
  • The recommended input capacitor is a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 50V or higher. The recommended output capacitor is a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 35V or higher.
  • To protect the device from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a voltage monitor IC that can detect and respond to voltage faults. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage to a safe level.
  • The recommended input voltage range for the GBPC3508W-BP is 7V to 36V. Operating the device outside of this range may affect its performance and reliability.
