GBPC3508W-G Frequently Asked Questions (FAQs)

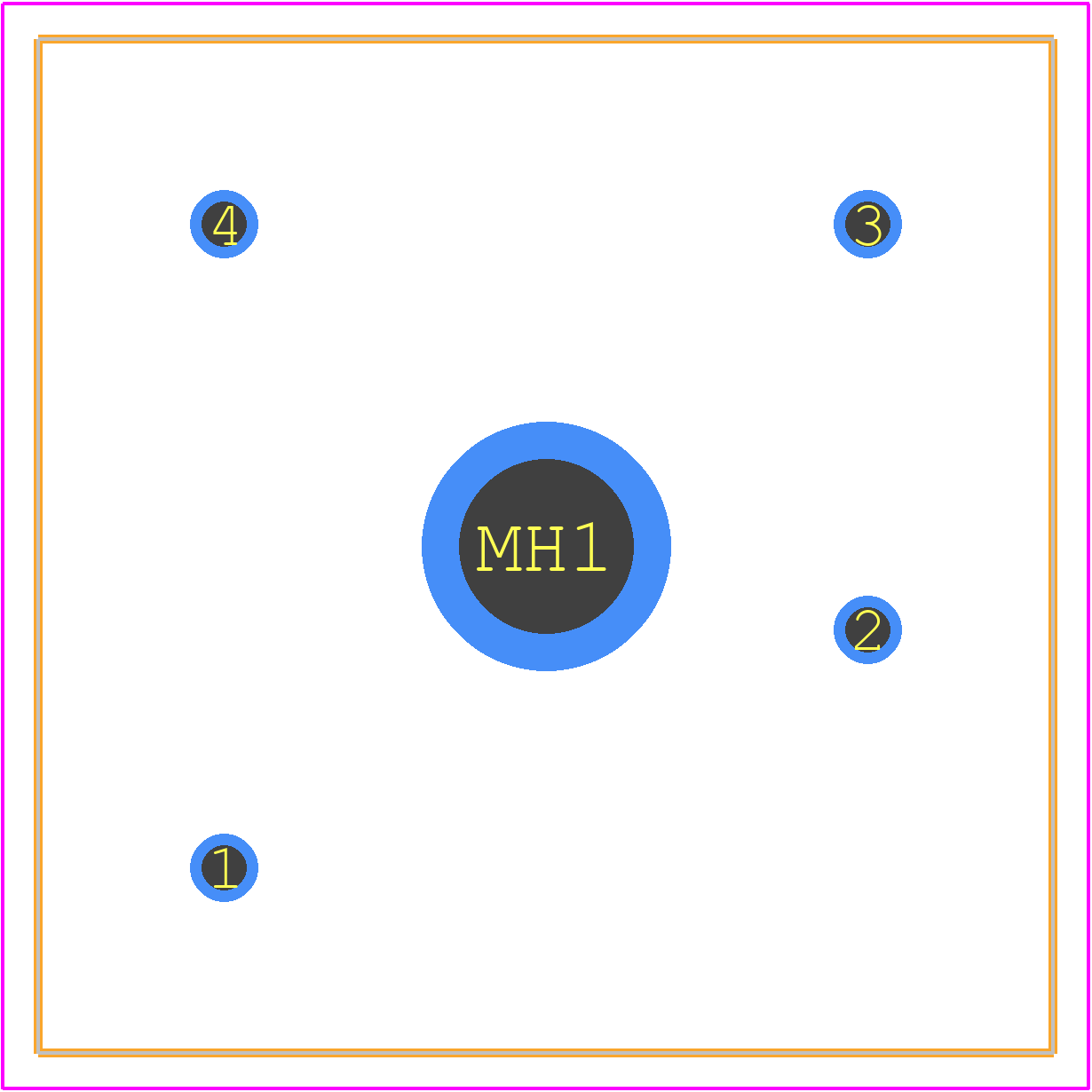

• What is the recommended PCB layout for optimal thermal performance?
  A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
• How do I ensure reliable operation across the full temperature range?
  Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material to improve heat transfer.
• What are the ESD protection and latch-up prevention measures for this device?
  The GBPC3508W-G has built-in ESD protection diodes, but additional external protection may be necessary depending on the application. Latch-up prevention can be achieved through careful PCB design and layout, as well as using a latch-up prevention diode if necessary.
• Can I use this device in a high-reliability or automotive application?
  The GBPC3508W-G is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper qualification and testing. Consult with the manufacturer for specific requirements and recommendations.
• What are the recommended soldering and rework conditions for this device?
  Follow the manufacturer's recommended soldering profile, which typically includes a peak temperature of 260°C and a dwell time of 10-30 seconds. For rework, use a low-temperature soldering iron and a solder wick or desoldering braid to minimize thermal stress.
