GeneSic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
Ensure proper heat sinking, use a thermally conductive material for the heat sink, and maintain a maximum junction temperature (Tj) of 150°C. Also, follow the recommended derating curves for current and voltage.
The maximum allowed voltage transient is 120% of the maximum rated voltage (Vdrm) for a duration of 100ms. Exceeding this may cause damage to the device.
Use a TVS (Transient Voltage Suppressor) diode or a varistor in parallel with the device to absorb voltage transients. Also, ensure proper PCB layout and routing to minimize inductance and capacitance.
The recommended gate drive voltage is 15V, and the recommended gate drive current is 2A. This ensures reliable switching and minimizes power losses.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GBU10J Overview

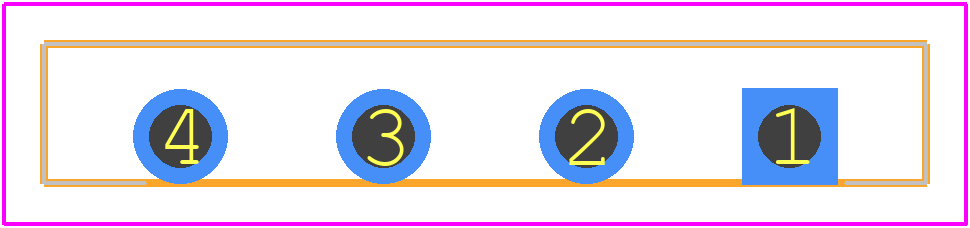

Use the download button to access the GBU10J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GBU10,
or try a keyword search, such as Bridge Rectifier Diodes
