GBU4B - onsemi

Description: Surge Overload Rating: 150 A peak; Glass-Passivated Junction; Reliable Low-Cost Construction Utilizing Molded Plastic Technique; UL certified, UL #E258596; Ideal for Printed Circuit Bboard

Download GBU4B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBU4B - onsemi - PCB symbol
click to zoom
PCB Footprints

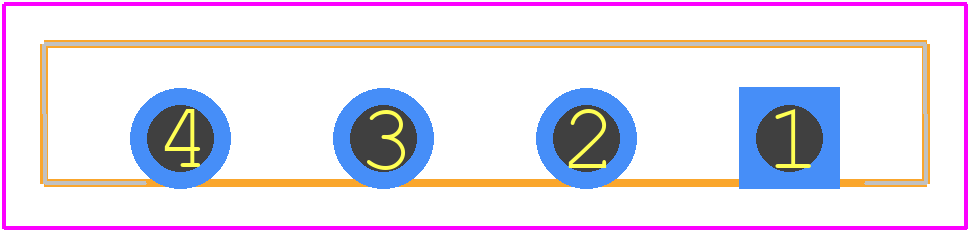

GBU4B - onsemi PCB footprint - Other - Other - SIP4 22.05x18.55 CASE 127EL ISSUE O_2019
click to zoom
3D Models
GBU4B - onsemi - 3D model - Other - SIP4 22.05x18.55 CASE 127EL ISSUE O_2019
click to zoom

GBU4B Details

  • Manufacturer Part Number:

    GBU4B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP-4

  • Manufacturer Package Code:

    127EL

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    onsemi

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    100 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • JESD-30 Code:

    R-PSFM-T4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Power Dissipation-Max:

    8 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE
