GBU4D-E3/51 - Vishay

Description: Diode Rectifier Bridge Single 200V 4A 4-Pin Case GBU Bulk

Download GBU4D-E3/51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBU4D-E3/51 - Vishay - PCB symbol
click to zoom
PCB Footprints

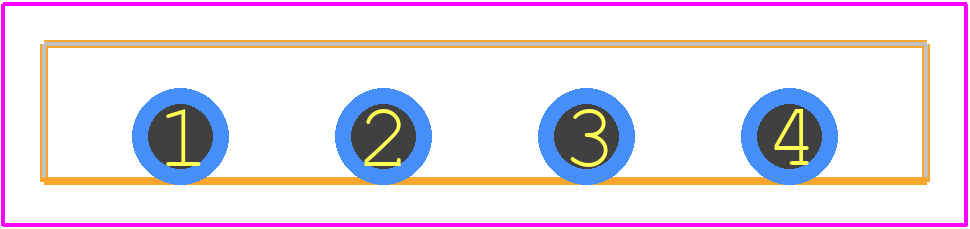

GBU4D-E3/51 - Vishay PCB footprint - Other - Other - GBU4D-E3/51-2
click to zoom
3D Models
GBU4D-E3/51 - Vishay - 3D model - Other - GBU4D-E3/51-2
click to zoom

GBU4D-E3/51 Details

  • Manufacturer Part Number:

    GBU4D-E3/51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, CASE GBU, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    200 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • JESD-30 Code:

    R-PSFM-T4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TRAY

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    200 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

GBU4D-E3/51 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the GBU4D-E3/51 is between 250°C to 260°C, with a maximum peak temperature of 265°C for a duration of 10 seconds.
  • While the GBU4D-E3/51 is primarily designed for general-purpose rectification, it can be used in high-frequency applications up to 100 kHz. However, the device's performance may degrade at higher frequencies, and additional considerations such as parasitic inductance and capacitance should be taken into account.
  • The GBU4D-E3/51 is designed to withstand surge currents up to 100 A for a duration of 10 ms. However, it's essential to ensure that the device is properly heat-sinked and that the surge current does not exceed the maximum rated value to prevent damage or degradation.
  • The GBU4D-E3/51 has a maximum operating junction temperature of 150°C. While it can operate in high-temperature environments, it's essential to ensure that the device is properly heat-sinked and that the operating temperature does not exceed the maximum rated value to prevent degradation or failure.
  • Yes, the GBU4D-E3/51 can be used in parallel or series configurations to increase the overall current rating or voltage rating. However, it's essential to ensure that the devices are properly matched and that the total current or voltage rating does not exceed the maximum rated value for each device.
