GBU4JL-BP - MCC

Description: Bridge Rectifier Single Phase Standard 600 V Through Hole GBU

Download GBU4JL-BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBU4JL-BP - MCC - PCB symbol
click to zoom
PCB Footprints

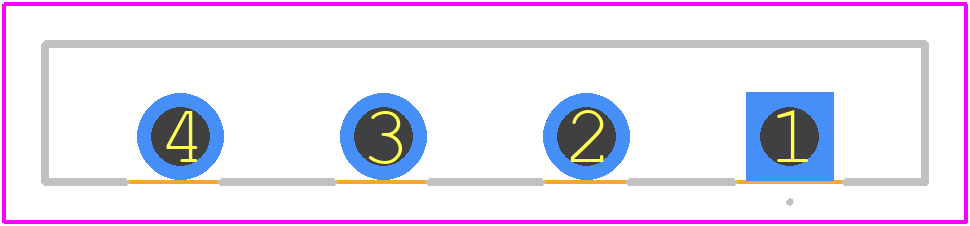

GBU4JL-BP - MCC PCB footprint - Other - Other - GBU_AD
click to zoom
3D Models
GBU4JL-BP - MCC - 3D model - Other - GBU_AD
click to zoom

GBU4JL-BP Details

  • Manufacturer Part Number:

    GBU4JL-BP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Date Of Intro:

    2016-12-08

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    7

  • Breakdown Voltage-Min:

    600 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.89 V

  • JESD-30 Code:

    R-PSFM-T4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    600 V

  • Reverse Current-Max:

    5 µA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10
