GBU4M-E3/51 - Vishay

Description: Bridge Rectifier Diode 4A 1KV GBU

Download GBU4M-E3/51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBU4M-E3/51 - Vishay - PCB symbol
click to zoom
PCB Footprints

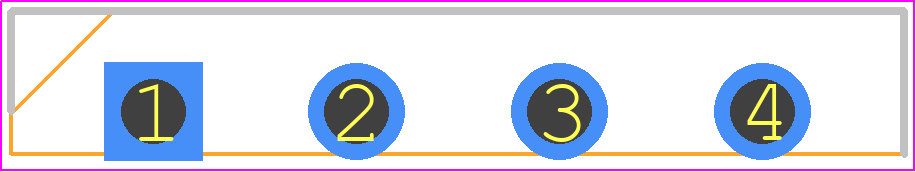

GBU4M-E3/51 - Vishay PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - GBU4M-E3/51
click to zoom
3D Models
GBU4M-E3/51 - Vishay - 3D model - Transistor Outline, Vertical - GBU4M-E3/51
click to zoom

GBU4M-E3/51 Details

  • Manufacturer Part Number:

    GBU4M-E3/51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, CASE GBU, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    1000 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • JESD-30 Code:

    R-PSFM-T4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TRAY

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE
