GBUA15M-BP - MCC

Description: 1-Phase Bridge IF(AV) 15(A) VRWM 1000(V) IFSM 200(A) IF 7.5(A) VR 1000(V) Tj [max] 150(°C) JC

Download GBUA15M-BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GBUA15M-BP - MCC - PCB symbol
click to zoom
PCB Footprints

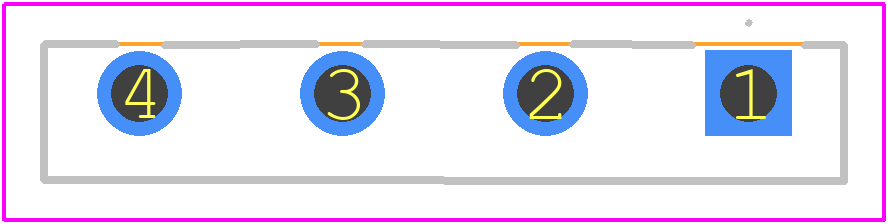

GBUA15M-BP - MCC PCB footprint - Other - Other - JC_2
click to zoom
3D Models
GBUA15M-BP - MCC - 3D model - Other - JC_2
click to zoom

GBUA15M-BP Details

  • Manufacturer Part Number:

    GBUA15M-BP

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • Non-rep Pk Forward Current-Max:

    200 A

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Reverse Current-Max:

    5 µA

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
