GC355DD72J104KX01L - Murata Electronics

Description: Capacitor GC355 L=5.7mm W=5.0mm T=2.0mm

Download GC355DD72J104KX01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GC355DD72J104KX01L - Murata Electronics - PCB symbol
click to zoom

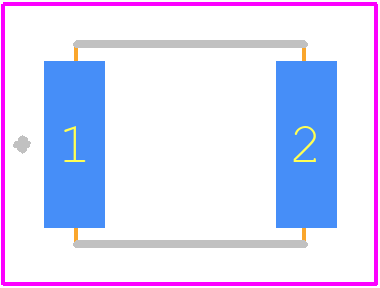

PCB Footprints
GC355DD72J104KX01L - Murata Electronics PCB footprint - Other - Other - GC355 L=5.7mm W=5.0mm T=2.0mm
click to zoom
3D Models
GC355DD72J104KX01L - Murata Electronics - 3D model - Other - GC355 L=5.7mm W=5.0mm T=2.0mm
click to zoom

GC355DD72J104KX01L Details

  • Manufacturer Part Number:

    GC355DD72J104KX01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2 mm

  • JESD-609 Code:

    e3

  • Length:

    5.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    YES

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    180mm Reel Embossed Tape

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    630 V

  • Reference Standard:

    AEC-Q200

  • Size Code:

    5750M/2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7T

  • Temperature Coefficient:

    22/-33% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    5 mm

GC355DD72J104KX01L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the GC355DD72J104KX01L can be found in the Murata Land Pattern Recommendation document, which provides guidelines for pad size, shape, and spacing to ensure reliable soldering and minimize defects.
  • The Equivalent Series Resistance (ESR) of the GC355DD72J104KX01L is an important parameter in high-frequency circuits, as it affects the capacitor's impedance and energy losses. A lower ESR generally results in better high-frequency performance, and Murata's datasheet provides ESR values at different frequencies to help designers make informed decisions.
  • While the GC355DD72J104KX01L is a high-reliability capacitor, it is not specifically designed for automotive applications, which require additional qualifications and testing. Murata offers other capacitor series, such as the GRM series, that are specifically designed and qualified for automotive use.
  • The GC355DD72J104KX01L is a rigid ceramic capacitor, and its mechanical characteristics may not be suitable for use in flex circuits or flexible PCBs, which are subject to bending and flexing. Murata recommends using flexible capacitors, such as the FX series, which are specifically designed for use in flexible circuits.
  • Voltage derating is a critical consideration for capacitors, as excessive voltage can reduce their reliability and lifespan. The GC355DD72J104KX01L has a voltage rating of 100 V, and derating is recommended to ensure reliable operation. Murata provides guidelines for voltage derating in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GC355DD72J104KX01L Overview

Use the download button to access the GC355DD72J104KX01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GC355, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
