GC355DD72W224KX01L - Murata Electronics

Description: Capacitor GC355 L=5.7mm W=5.0mm T=2.0mm

Download GC355DD72W224KX01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GC355DD72W224KX01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

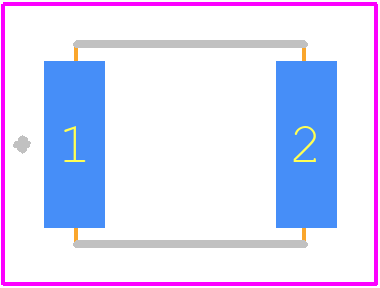

GC355DD72W224KX01L - Murata Electronics PCB footprint - Other - Other - GC355 L=5.7mm W=5.0mm T=2.0mm
click to zoom
3D Models
GC355DD72W224KX01L - Murata Electronics - 3D model - Other - GC355 L=5.7mm W=5.0mm T=2.0mm
click to zoom

GC355DD72W224KX01L Details

  • Manufacturer Part Number:

    GC355DD72W224KX01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2 mm

  • JESD-609 Code:

    e3

  • Length:

    5.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    YES

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    180mm Reel Embossed Tape

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    450 V

  • Reference Standard:

    AEC-Q200

  • Size Code:

    5750M/2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7T

  • Temperature Coefficient:

    22/-33% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    5 mm

GC355DD72W224KX01L Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.2mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between pads.
  • Handle the capacitor by the body, avoiding touching the terminals or electrodes. Use a vacuum pickup or tweezers to handle the component. For rework, use a hot air rework station with a temperature range of 230°C to 250°C, and a dwell time of 30 seconds to 60 seconds.
  • Murata recommends a voltage derating of 80% or less for the GC355DD72W224KX01L capacitor, depending on the operating temperature and application requirements.
  • Yes, the GC355DD72W224KX01L capacitor is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the capacitor's impedance characteristics, self-resonance frequency, and parasitic inductance when designing the circuit.
  • The GC355DD72W224KX01L capacitor is designed to operate up to 125°C. At high temperatures, the capacitor's capacitance value may decrease, and the equivalent series resistance (ESR) may increase. It's essential to consider these factors when designing the circuit and ensuring reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GC355DD72W224KX01L Overview

Use the download button to access the GC355DD72W224KX01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GC355, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
