GC355XD7LQ564KX17L - Murata Electronics

Description: High Effective Capacitance & High Ripple Current Chip Multilayer Ceramic Capacitors for Automotive (Powertrain/Safety), 2220

Download GC355XD7LQ564KX17L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GC355XD7LQ564KX17L - Murata Electronics - PCB symbol
click to zoom

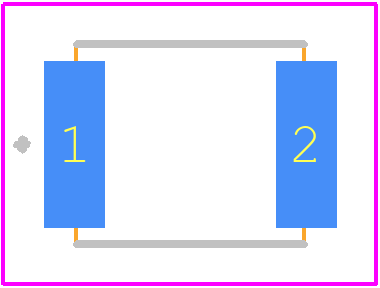

PCB Footprints
GC355XD7LQ564KX17L - Murata Electronics PCB footprint - Other - Other - GC355x
click to zoom
3D Models
GC355XD7LQ564KX17L - Murata Electronics - 3D model - Other - GC355x
click to zoom

GC355XD7LQ564KX17L Details

  • Manufacturer Part Number:

    GC355XD7LQ564KX17L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.56 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2.7 mm

  • JESD-609 Code:

    e3

  • Length:

    5.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    YES

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    180mm Reel Embossed Tape

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    630 V

  • Reference Standard:

    AEC-Q200

  • Size Code:

    5750M/2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7T

  • Temperature Coefficient:

    22/-33% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    5 mm

GC355XD7LQ564KX17L Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.2mm x 1.6mm and a spacing of 0.5mm between pads. Refer to Murata's recommended land pattern document for more details.
  • The GC355XD7LQ564KX17L is a moisture-sensitive device. Handle it in a dry environment (RH < 30%) and avoid exposing it to moisture during storage or assembly. Follow Murata's guidelines for moisture-sensitive devices.
  • Murata recommends derating the voltage by 10% for every 1,000 meters above sea level. For example, at 2,000 meters, the maximum voltage rating would be 90% of the specified value.
  • The GC355XD7LQ564KX17L is suitable for high-frequency applications up to 100 MHz. However, it's essential to consider the capacitor's impedance characteristics and ensure it meets your specific application requirements.
  • The Equivalent Series Resistance (ESR) of the GC355XD7LQ564KX17L is typically around 0.05 ohms. A lower ESR can improve the capacitor's high-frequency performance, but it may also increase the cost. Consult with Murata or a qualified engineer to determine the optimal ESR for your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GC355XD7LQ564KX17L Overview

Use the download button to access the GC355XD7LQ564KX17L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GC355, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
