GCB20DYHD - Sullins

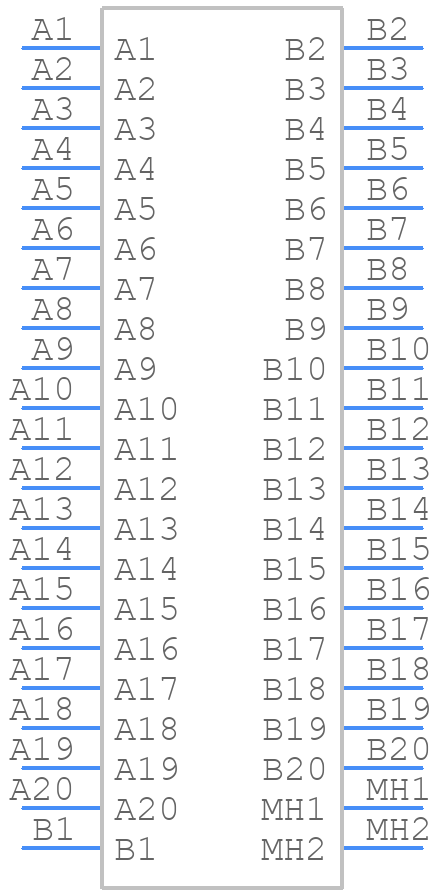

GCB20DYHD Details

• Manufacturer Part Number:

  GCB20DYHD

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Sullins Connector Solutions

• YTEOL:

  6.5

• Board Mounting Option:

  HOLE .12- .126

• Body Breadth:

  0.37 inch

• Body Depth:

  0.61 inch

• Body Length:

  1.84 inch

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  BELLOWED TYPE

• Durability:

  500 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  1.668 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .115-.125

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

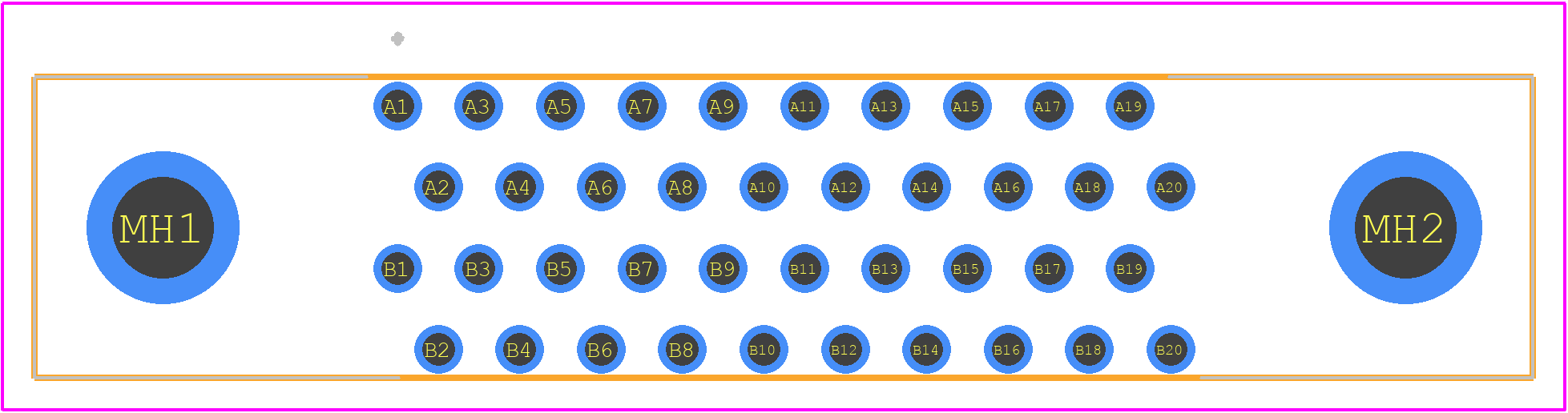

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  40

• Withdrawl Force-Min:

  .139 N
