GD2X30MPS12D - Navitas Semiconductor, Inc.

GD2X30MPS12D Details

• Manufacturer Part Number:

  GD2X30MPS12D

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Navitas Semiconductor

• Additional Feature:

  FREE WHEELING DIODE, PD-CASE

• Application:

  EFFICIENCY

• Case Connection:

  CATHODE

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON CARBIDE

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.8 V

• JEDEC-95 Code:

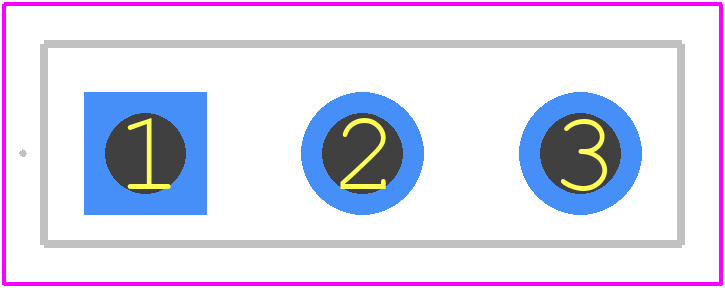

  TO-247

• JESD-30 Code:

  R-PSFM-T3

• Non-rep Pk Forward Current-Max:

  240 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  55 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Power Dissipation-Max:

  626 W

• Rep Pk Reverse Voltage-Max:

  1200 V

• Reverse Current-Max:

  20 µA

• Reverse Test Voltage:

  1200 V

• Surface Mount:

  NO

• Technology:

  SCHOTTKY

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE
