- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GEC06DFBN-M30
- Part Number GEC06DFBN-M30
- Manufacturer Sullins
- Pin Count 12
- Part Category Connector
- Package Category Header, Vertical

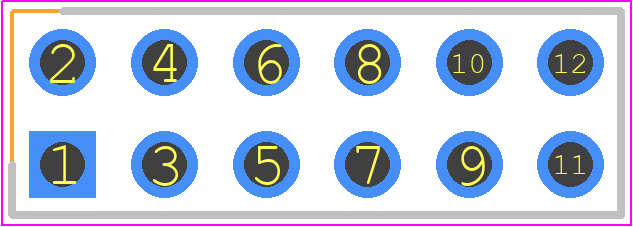

- Footprint Name Header, Vertical - GEC06DFBN-M30*
- Released Date Jun 18, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GEC06DFBN-M30 Details
-
Manufacturer Part Number:
GEC06DFBN-M30
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Sullins Connector Solutions
-
YTEOL:
9.1
-
Body Breadth:
0.2 inch
-
Body Length:
0.6 inch
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
SN ON NI
GEC06DFBN-M30 Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the GEC06DFBN-M30 connector is 0.5-1.5 Nm (4-12 in-lbs).
-
Yes, the GEC06DFBN-M30 connector is designed to withstand high-vibration environments and is suitable for applications such as industrial control systems, transportation systems, and more.
-
Yes, the GEC06DFBN-M30 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C, and is resistant to moisture, dust, and other contaminants.
-
The GEC06DFBN-M30 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.
-
Yes, the GEC06DFBN-M30 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in a wide range of applications.
Trust Checks
Community Provided
System Verified
Community Approved
GEC06DFBN-M30 Overview
Use the download button to access the GEC06DFBN-M30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GEC06,
or try a keyword search, such as Headers and Edge Type Connectors
