The recommended storage temperature for GF-1126-1110 is -20°C to 40°C (-4°F to 104°F) to maintain its electrical properties and prevent degradation.
Yes, GF-1126-1110 is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure the device to prevent mechanical stress and damage.
To prevent electrostatic discharge (ESD) damage, use ESD-protective equipment, such as wrist straps, mats, and bags. Handle the device by the body, not the leads, and avoid touching the pins or components.
The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. Exceeding these limits may damage the device or affect its performance.
While GF-1126-1110 is designed to operate in a wide range of temperatures, it's not recommended for use in extremely humid or high-moisture environments. If exposure to moisture is unavoidable, ensure proper sealing and conformal coating to prevent water ingress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GF-1126-1110 Overview

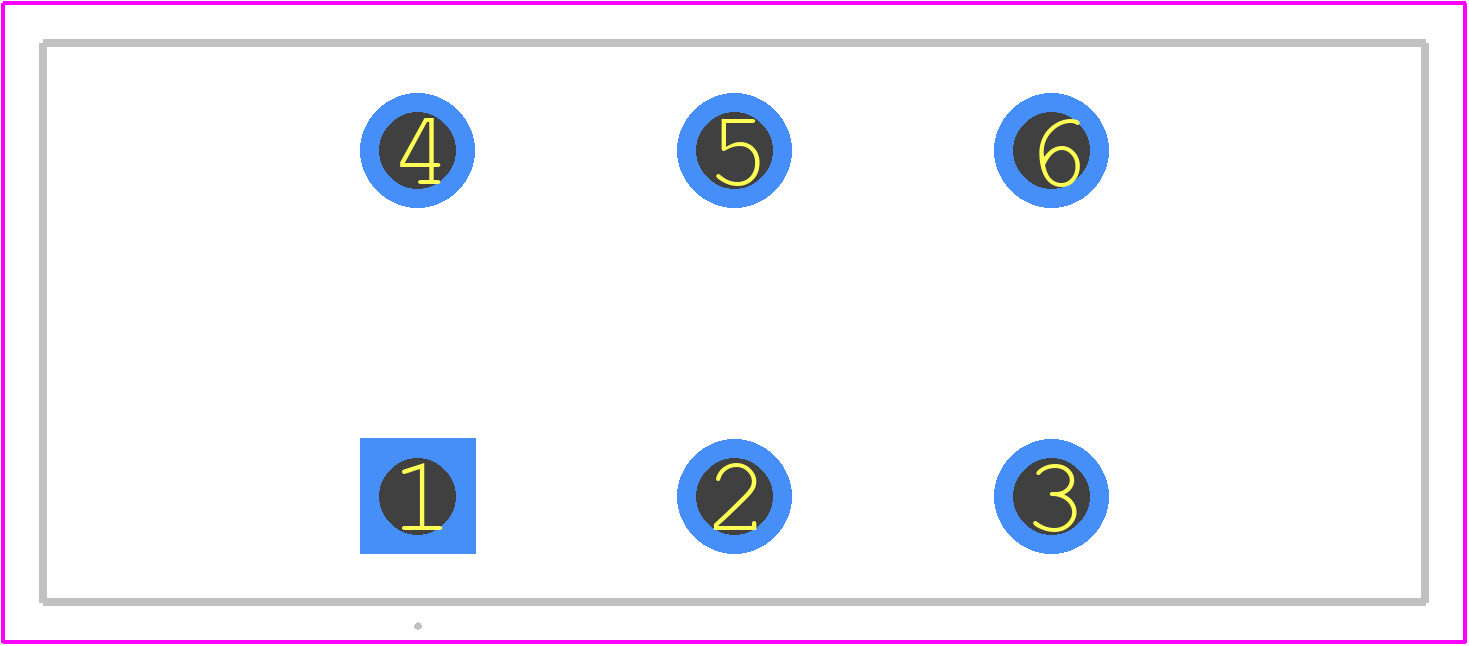

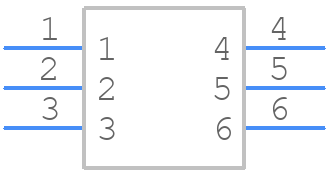

Use the download button to access the GF-1126-1110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GF-11,
or try a keyword search, such as Slide Switches
