The recommended torque specification for the screw terminals of GF-126-0159 is 0.5-1.0 in-lbs (0.056-0.113 Nm).
Yes, GF-126-0159 is designed to withstand high-vibration environments. However, it's recommended to follow CW Industries' guidelines for mounting and securing the device to ensure reliable performance.
The maximum operating temperature range for GF-126-0159 is -40°C to 125°C (-40°F to 257°F).
Yes, GF-126-0159 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
It is recommended to store GF-126-0159 in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GF-126-0159 Overview

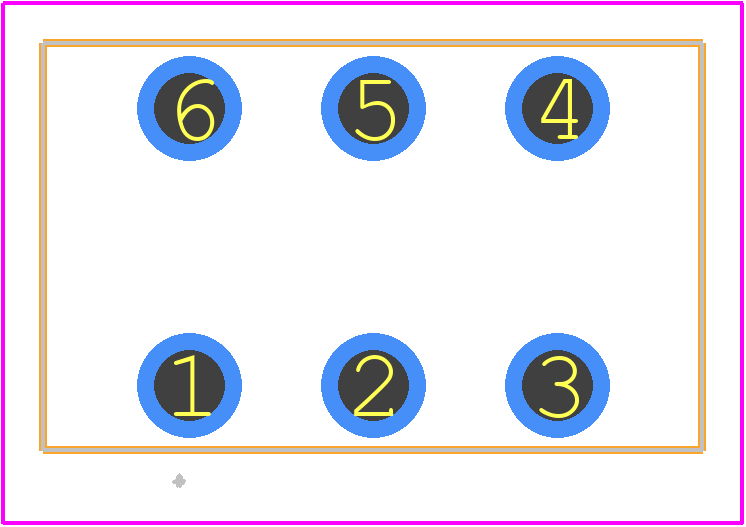

Use the download button to access the GF-126-0159 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GF-12,
or try a keyword search, such as Slide Switches
