CW Industries recommends a PCB layout with a minimum of 0.125 inches (3.18 mm) of clearance around the fuse body to ensure proper heat dissipation and to prevent electrical arcing.
Yes, the GF-126-0317 is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure the fuse to the PCB to prevent damage or dislodging.
The GF-126-0317 is designed to open (blow) in response to overcurrent conditions, not overvoltage conditions. If overvoltage protection is required, additional protection devices, such as a voltage suppressor or a varistor, should be used in conjunction with the fuse.
The GF-126-0317 has a maximum operating temperature of 125°C (257°F). While it can operate in high-temperature environments, its performance and lifespan may be affected. Consult the datasheet and CW Industries' application notes for specific guidance.
The GF-126-0317 is designed to handle moderate inrush currents. However, if your application has extremely high inrush currents, you may need to consider a fuse with a slower blow characteristic or a specialized inrush current limiter.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GF-126-0317 Overview

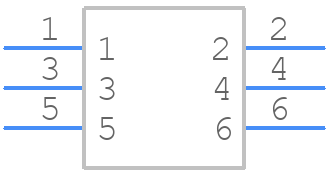

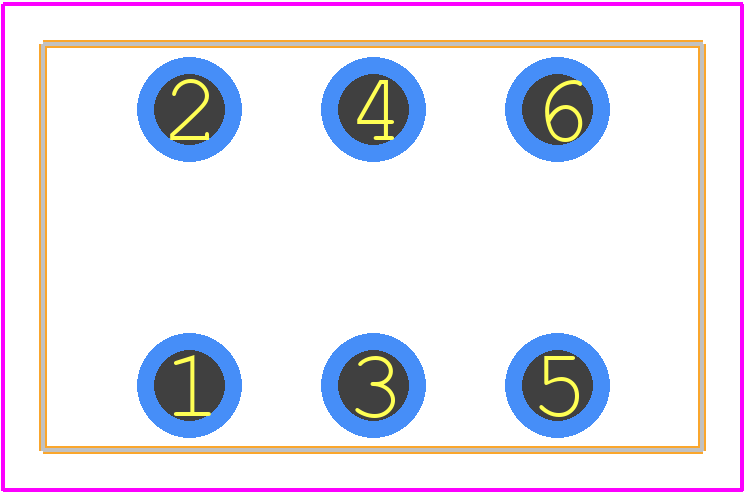

Use the download button to access the GF-126-0317 schematic symbol, PCB footprint, and 3D model.
