GF-126-0331 - CW Industries

Description: Slide Switch DPDT Through Hole

Download GF-126-0331 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GF-126-0331 - CW Industries - PCB symbol
click to zoom
PCB Footprints

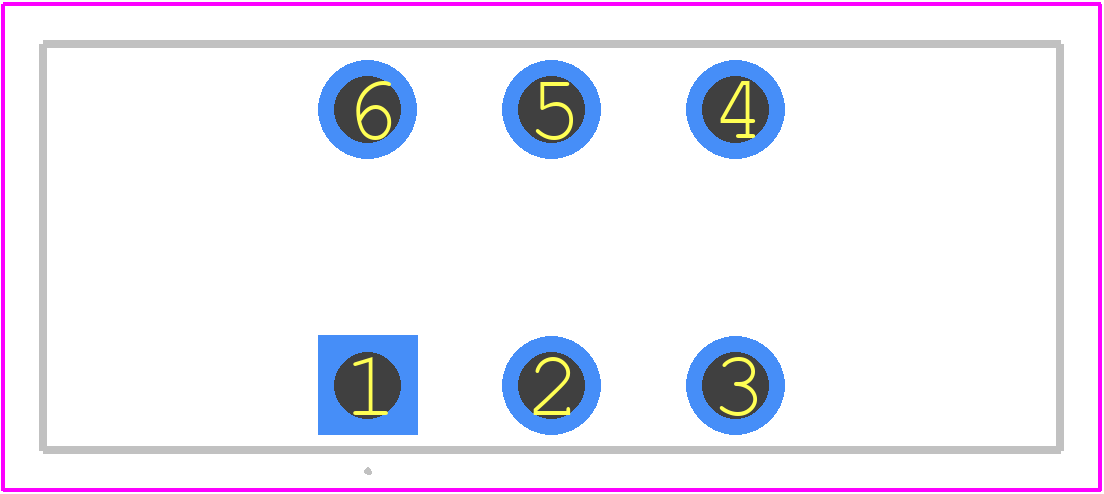

GF-126-0331 - CW Industries PCB footprint - Other - Other - GF-126-0331-2
click to zoom
3D Models
GF-126-0331 - CW Industries - 3D model - Other - GF-126-0331-2
click to zoom

GF-126-0331 Details

  • Manufacturer Part Number:

    GF-126-0331

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    CW Industries

  • YTEOL:

    8

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.2 inch

  • Actuator Material:

    NYLON

  • Actuator Type:

    SLIDE

  • Body Breadth:

    10.16 mm

  • Body Height:

    7.239 mm

  • Body Length or Diameter:

    15.9512 mm

  • Contact (AC) Max Rating R Load:

    3A@125VAC

  • Contact Current(AC)-Max:

    3 A

  • Contact Current(DC)-Max:

    0.5 A

  • Contact (DC) Max Rating R Load:

    0.5A@125VDC

  • Contact Function:

    ON-ON

  • Contact Resistance:

    0.01 mΩ

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    125 V

  • Electrical Life:

    10000 Cycle(s)

  • Housing Material:

    COLD ROLLED STEEL

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    2

  • Operating Temperature-Max:

    104 °C

  • Operating Temperature-Min:

    -10 °C

  • PCB Hole Count:

    6

  • Surface Mount:

    NO

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE SWITCH

  • Terminal Length:

    0.219 inch

  • Terminal Material:

    COPPER

  • Termination Type:

    SOLDER
