GF-161-3011 - CW Industries

GF-161-3011 Details

• Manufacturer Part Number:

  GF-161-3011

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  CW Industries

• YTEOL:

  8

• Actuator Color:

  BLACK

• Actuator Length:

  0.2 inch

• Actuator Material:

  NYLON

• Actuator Type:

  SLIDE

• Body Breadth:

  14.4018 mm

• Body Height:

  7.493 mm

• Body Length or Diameter:

  25.4 mm

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  3A@125VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  0.5 A

• Contact (DC) Max Rating R Load:

  0.5A@125VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  125 V

• Electrical Life:

  10000 Cycle(s)

• Housing Material:

  COLD ROLLED STEEL

• Mounting Feature:

  PANEL MOUNT

• Number of Positions:

  2

• Operating Temperature-Max:

  104 °C

• Operating Temperature-Min:

  -10 °C

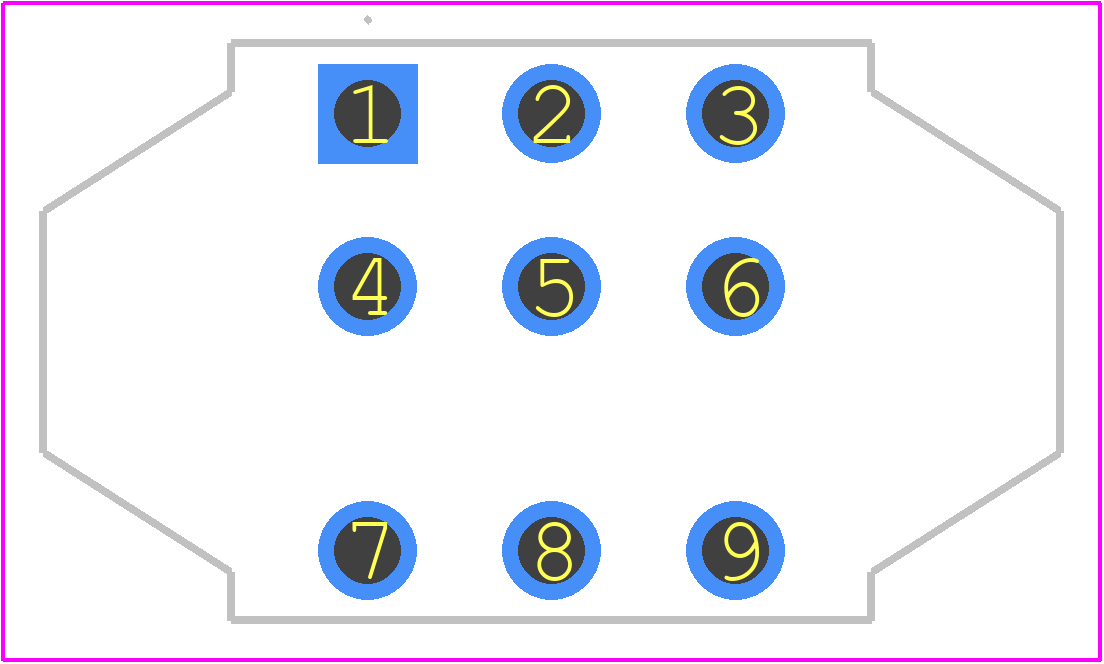

• PCB Hole Count:

  9

• Surface Mount:

  NO

• Switch Function:

  3PDT

• Switch Type:

  SLIDE SWITCH

• Terminal Length:

  0.25 inch

• Terminal Material:

  COPPER

• Termination Type:

  SOLDER
