The recommended torque for the screw terminals of GF-661-0010 is 0.5-1.5 in-lbs (0.056-0.169 Nm).
Yes, the GF-661-0010 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6.
While the GF-661-0010 is primarily designed for CC-class fuses, it can also be used with other fuse classes such as Midget, TE5, and TE7, but the user must ensure the fuse meets the holder's electrical and mechanical requirements.
The operating temperature range of the GF-661-0010 is -40°C to 125°C (-40°F to 257°F).
Yes, the GF-661-0010 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements of EU directives 2011/65/EU and (EC) No 1907/2006, respectively.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GF-661-0010 Overview

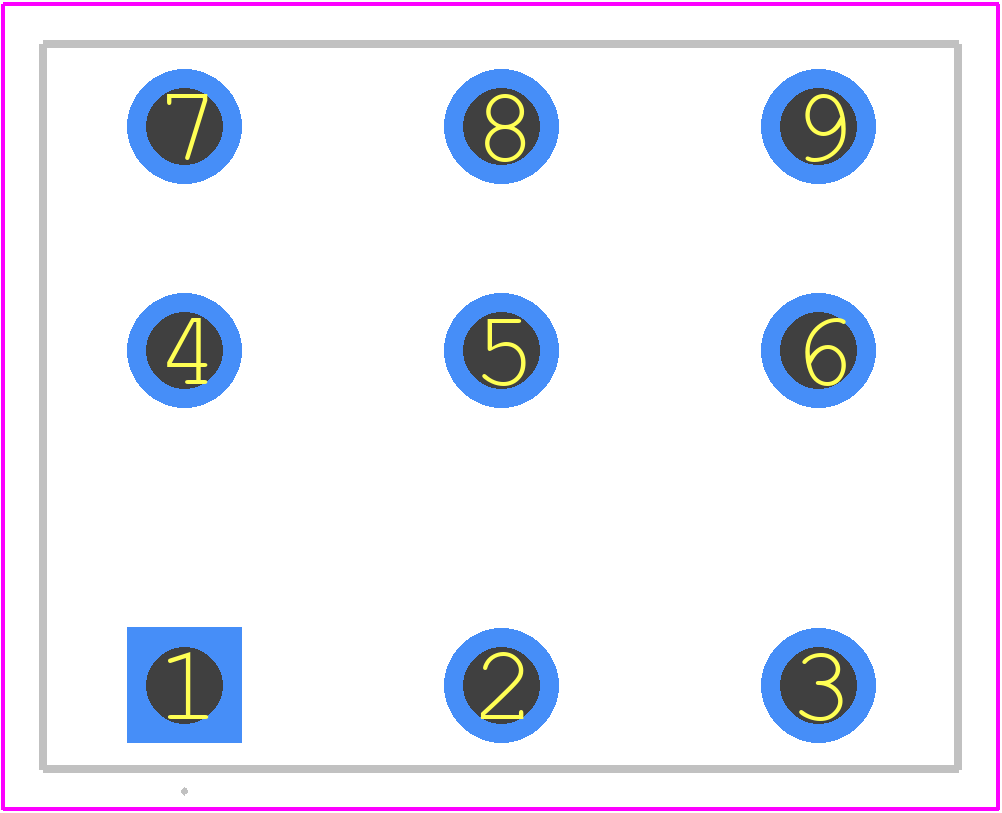

Use the download button to access the GF-661-0010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GF-66,
or try a keyword search, such as Slide Switches
