GLPLX-SMT-188S7-QQ-Y/G - Kycon

Description: Modular Connectors / Ethernet Connectors Low Prof. RJ45 ModJk w Gb. Magnetics LED

Download GLPLX-SMT-188S7-QQ-Y/G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

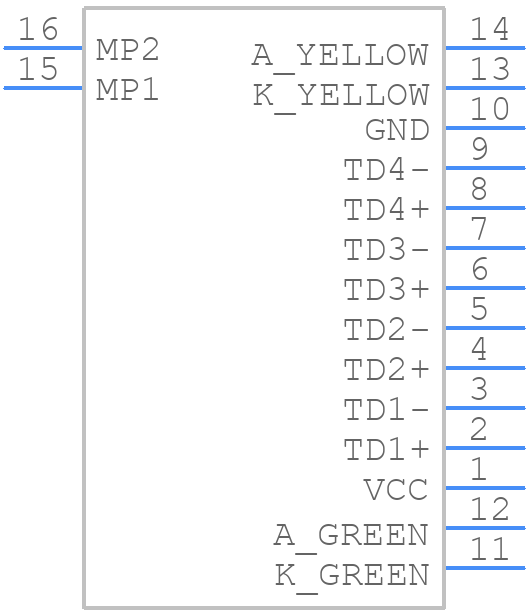

GLPLX-SMT-188S7-QQ-Y/G - Kycon - PCB symbol
click to zoom
PCB Footprints

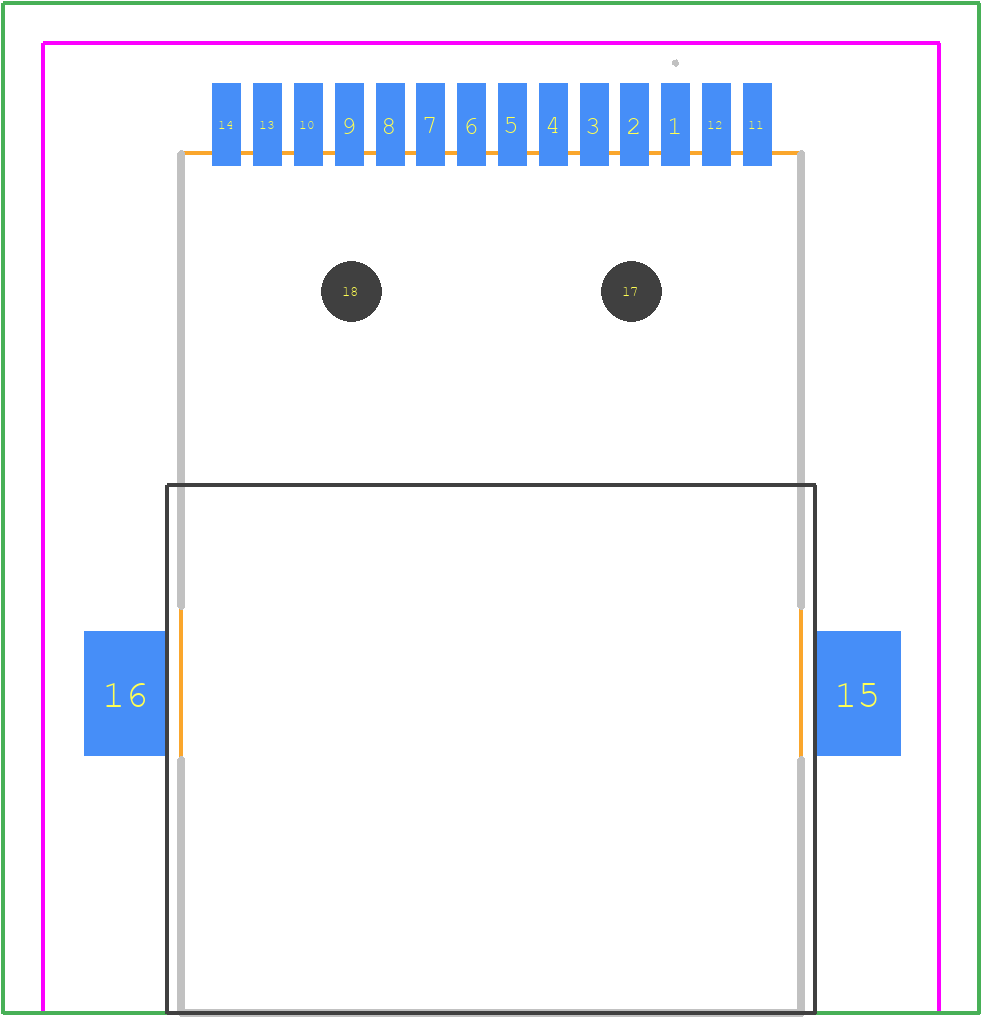

GLPLX-SMT-188S7-QQ-Y/G - Kycon PCB footprint - Other - Other - GLPLX-SMT-188S7-QQ-Y/G-3
click to zoom
3D Models
GLPLX-SMT-188S7-QQ-Y/G - Kycon - 3D model - Other - GLPLX-SMT-188S7-QQ-Y/G-3
click to zoom

GLPLX-SMT-188S7-QQ-Y/G Details

  • Manufacturer Part Number:

    GLPLX-SMT-188S7-QQ-Y/G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Kycon Inc

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.447 inch

  • Body Depth:

    0.846 inch

  • Body Length:

    0.693 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    MODULAR JACK

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    750 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER POLYETHYLENE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    6u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

GLPLX-SMT-188S7-QQ-Y/G Frequently Asked Questions (FAQs)

  • Kycon provides a recommended PCB layout and land pattern in their application notes or design guides, which can be requested from their sales team or found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • While the GLPLX-SMT-188S7-QQ-Y/G is designed to be rugged, it's still important to evaluate its performance in high-vibration environments. Kycon may provide additional information on vibration testing and recommended mounting methods to ensure reliability in such conditions.
  • Proper thermal management is crucial for the GLPLX-SMT-188S7-QQ-Y/G. Ensure good airflow around the device, use thermal vias on the PCB, and consider adding a heat sink or thermal pad if necessary. Kycon may provide thermal resistance values and recommended thermal management strategies in their documentation.
  • While the datasheet may provide a recommended operating temperature range, it's essential to confirm the maximum operating temperature range with Kycon. This information may be available in the device's reliability report or through direct communication with Kycon's technical support team.
  • The GLPLX-SMT-188S7-QQ-Y/G may have specific ratings for humidity and moisture exposure. Check the datasheet for any relevant information, and consult with Kycon's technical support team if you need to operate the device in a humid or wet environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GLPLX-SMT-188S7-QQ-Y/G Overview

Use the download button to access the GLPLX-SMT-188S7-QQ-Y/G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GLPLX, or try a keyword search, such as Telecom and Datacom Connectors
