GLS85LD1001T-60-RI-LBTE - Greenliant

Description: Managed NAND 1GB PATA BGA 91b (SLC 100K) I-TEMP

Download GLS85LD1001T-60-RI-LBTE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GLS85LD1001T-60-RI-LBTE - Greenliant - PCB symbol
click to zoom
PCB Footprints

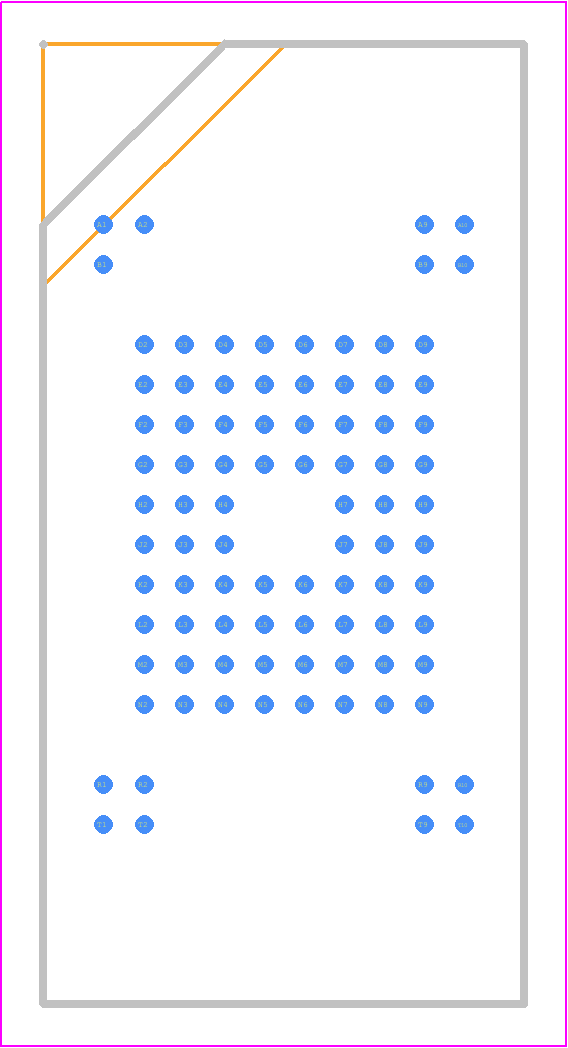

GLS85LD1001T-60-RI-LBTE - Greenliant PCB footprint - BGA - BGA - 91-Ball, Ball Grid Array (BGA)
click to zoom
3D Models
GLS85LD1001T-60-RI-LBTE - Greenliant - 3D model - BGA - 91-Ball, Ball Grid Array (BGA)
click to zoom

GLS85LD1001T-60-RI-LBTE Details

  • Manufacturer Part Number:

    GLS85LD1001T-60-RI-LBTE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LBGA-91

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Greenliant Systems Ltd

  • YTEOL:

    0

  • Drive Interface Standard:

    IDE

  • External Data Bus Width:

    16

  • Host Data Transfer Rate-Max:

    30 MBps

  • Host Interface Standard:

    ATA

  • JESD-30 Code:

    R-PBGA-B91

  • Length:

    24 mm

  • Number of Terminals:

    91

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    SECONDARY STORAGE CONTROLLER, FLASH MEMORY DRIVE

GLS85LD1001T-60-RI-LBTE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the GLS85LD1001T-60-RI-LBTE is -40°C to 85°C.
  • To ensure data integrity and prevent data corruption during power failures, it is recommended to use a power-on reset circuit and a voltage supervisor to monitor the power supply voltage and ensure that the device is properly reset during power-up and power-down sequences.
  • The GLS85LD1001T-60-RI-LBTE supports up to 100,000 erase cycles.
  • To optimize the performance of the GLS85LD1001T-60-RI-LBTE, it is recommended to use a high-quality power supply, minimize noise and interference on the signal lines, and optimize the firmware and software to minimize access times and maximize data transfer rates.
  • The typical access time for the GLS85LD1001T-60-RI-LBTE is 60ns.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GLS85LD1001T-60-RI-LBTE Overview

Use the download button to access the GLS85LD1001T-60-RI-LBTE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GLS85, or try a keyword search, such as Secondary Storage Controllers
