GNM214R71C223MA01D - Murata Electronics

Description: Murata Array Capacitor 22nF 16V dc ±20% 4-way X7R Dielectric 0805 Package Surface Mount

Download GNM214R71C223MA01D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

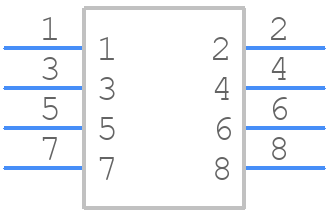

Symbol
GNM214R71C223MA01D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
GNM214R71C223MA01D - Murata Electronics PCB footprint - Other - Other - GNM214R71C223MA01D-4
click to zoom
3D Models
GNM214R71C223MA01D - Murata Electronics - 3D model - Other - GNM214R71C223MA01D-4
click to zoom

GNM214R71C223MA01D Details

  • Manufacturer Part Number:

    GNM214R71C223MA01D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.45

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Capacitance:

    0.022 µF

  • Capacitor Type:

    ARRAY/NETWORK CAPACITOR

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Network Type:

    ISOLATED C NETWORK

  • Number of Elements:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Code:

    CHIP

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    TR, PAPER, 7 INCH

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    0.5 mm

  • Terminal Shape:

    WRAPAROUND

  • Width:

    1.25 mm

GNM214R71C223MA01D Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, with a peak temperature of 240°C (464°F) to prevent damage to the capacitor.
  • Yes, the GNM214R71C223MA01D capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium above the specified limits.
  • The ESR of the GNM214R71C223MA01D capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on similar capacitors from Murata.
  • While the GNM214R71C223MA01D capacitor is designed to be reliable, it's essential to consider the vibration specifications of your application. Murata recommends following the vibration testing guidelines outlined in the IEC 60068-2-6 standard to ensure the capacitor's performance and reliability.
  • To prevent damage, store the capacitors in their original packaging or a similar protective container, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or applying excessive pressure to the capacitor during transportation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GNM214R71C223MA01D Overview

Use the download button to access the GNM214R71C223MA01D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GNM21, or try a keyword search, such as Array/Network Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
