GP2Y1+ - Mini-Circuits

Description: 2 Ways MMIC Power Splitter, 1550 - 4400 MHz, 50Ω

Download GP2Y1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

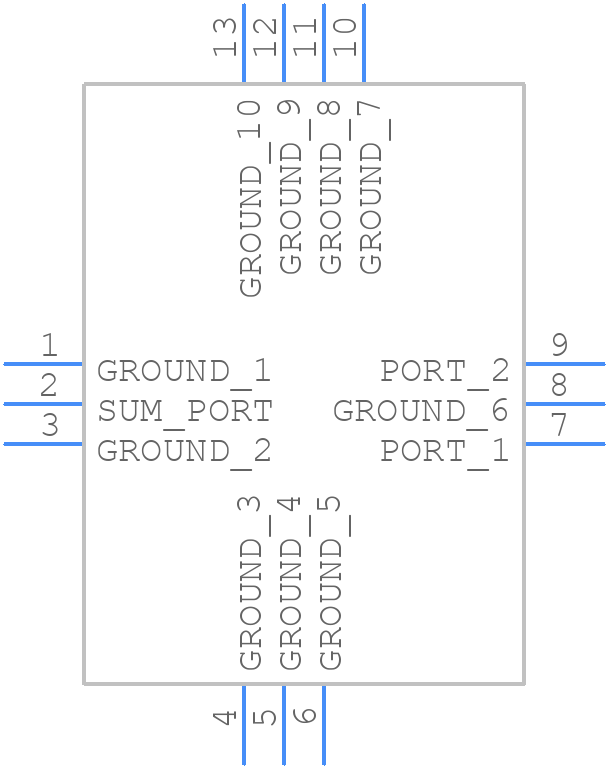

GP2Y1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
GP2Y1+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-12
click to zoom
3D Models
GP2Y1+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-12
click to zoom

GP2Y1+ Details

  • Manufacturer Part Number:

    GP2Y1+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.9 dB

  • Isolation-Min:

    12 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    4400 MHz

  • Operating Frequency-Min:

    1550 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.4

GP2Y1+ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VEE. This ensures that the internal voltage regulators are powered up correctly.
  • The output signal of the GP2Y1+ is an analog voltage that varies with distance. It's recommended to use a low-pass filter to remove noise and a voltage buffer to prevent loading effects.
  • The maximum distance that the GP2Y1+ can measure is approximately 80 cm (31.5 inches). However, the accuracy of the measurement decreases as the distance increases.
  • Temperature changes can affect the accuracy and stability of the GP2Y1+. It's recommended to operate the module within the specified temperature range (-20°C to 60°C) and to use temperature compensation techniques if necessary.
  • The GP2Y1+ is not designed to operate in humid or dusty environments. It's recommended to use the module in a clean and dry environment to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GP2Y1+ Overview

Use the download button to access the GP2Y1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GP2Y1, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
