GPI-152-3013 footprint, schematic symbol and 3D model by CW Industries

Symbol

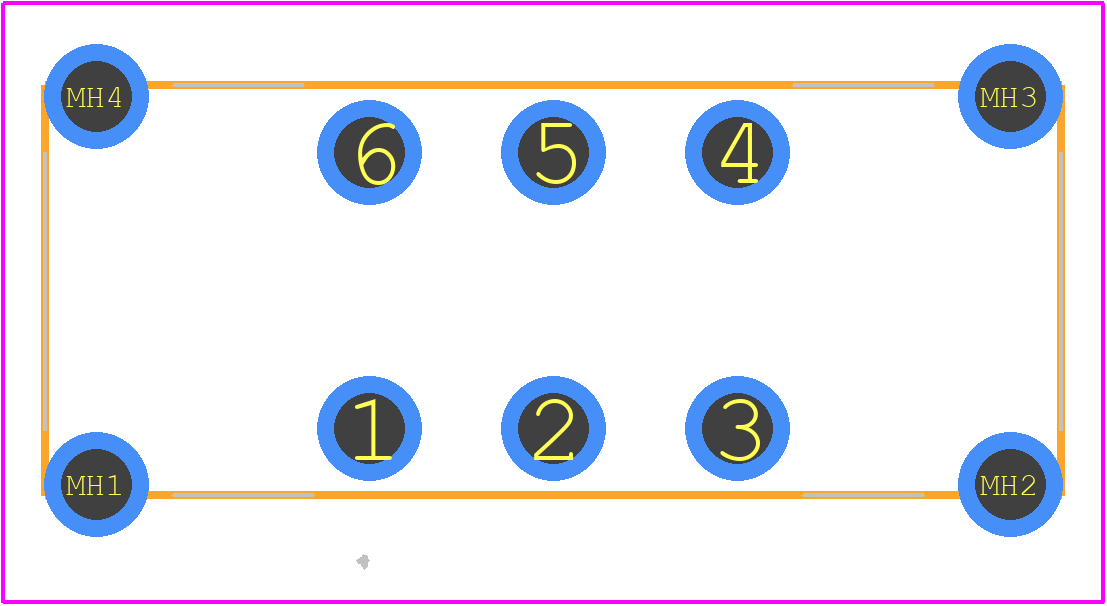

PCB Footprints

3D Models

GPI-152-3013 Details

The recommended torque specification for the GPI-152-3013 is 6-8 in-lbs (0.7-0.9 Nm) for the screw terminals and 10-12 in-lbs (1.1-1.4 Nm) for the nut and stud.
Yes, the GPI-152-3013 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the device to ensure reliable performance.
The GPI-152-3013 is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the device's performance may vary at extreme temperatures.
Yes, the GPI-152-3013 is compatible with lead-free soldering processes. However, it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
The recommended wire size for the GPI-152-3013 is 18 AWG to 24 AWG (0.8 mm² to 0.2 mm²). However, the actual wire size may vary depending on the specific application and requirements.

Expert Contribution

System Verified

Community Approved

Use the download button to access the GPI-152-3013 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GPI-1, or try a keyword search, such as Slide Switches
