GQA24003A480V-007-R - TDK Lambda

Description: DC-DC Converters, Power module type (with baseplate), Output: 120W, 48V, Isolated type, Option: Flanged baseplate, Negative logic ON/OFF control

Download GQA24003A480V-007-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

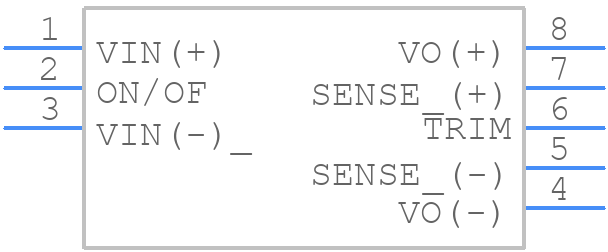

GQA24003A480V-007-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

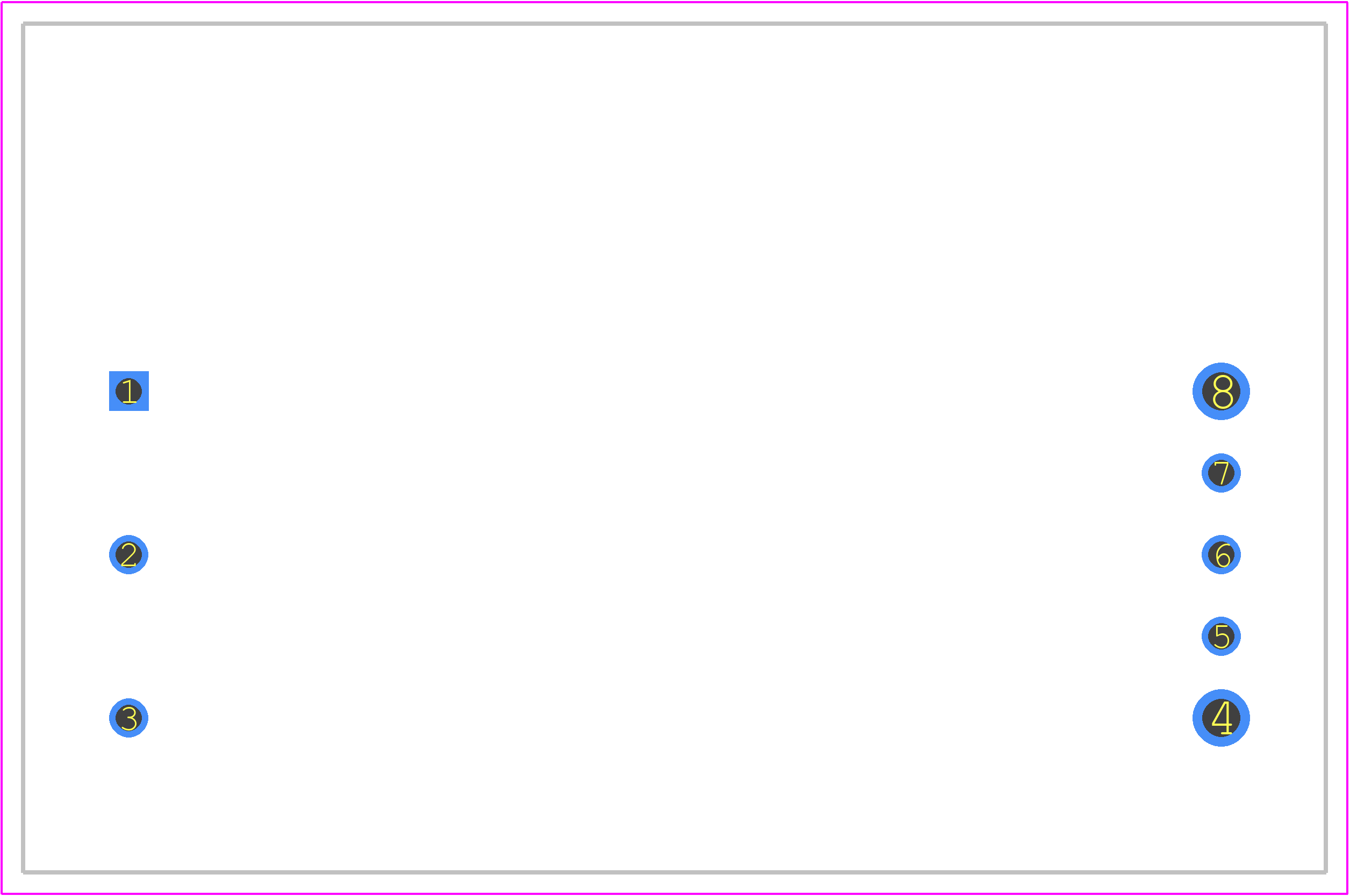

GQA24003A480V-007-R - TDK Lambda PCB footprint - Other - Other - GQA24003A480V-007-R-4
click to zoom
3D Models
GQA24003A480V-007-R - TDK Lambda - 3D model - Other - GQA24003A480V-007-R-4
click to zoom

GQA24003A480V-007-R Details

  • Manufacturer Part Number:

    GQA24003A480V-007-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • JESD-30 Code:

    R-XDFM-X8

  • Load Regulation-Max:

    0.03%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    45.6 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

GQA24003A480V-007-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the GQA24003A480V-007-R is -20°C to +70°C, with derating above 50°C.
  • Yes, the GQA24003A480V-007-R is designed to operate up to 5,000 meters (16,400 feet) above sea level.
  • The hold-up time for the GQA24003A480V-007-R is typically 10ms, ensuring that the output voltage remains stable during brief input power interruptions.
  • Yes, the GQA24003A480V-007-R is designed to be used in redundant configurations, with built-in ORing diodes and parallel operation capabilities.
  • The MTBF rating for the GQA24003A480V-007-R is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
