GQA2W005A240V-0P7-R - TDK Lambda

Description: DC-DC Converters, Power module type (with baseplate), Output: 120W, 24V, Isolated type, Option: Flanged baseplate, Negative logic ON/OFF control, Case & Potting 3kV isolation

Download GQA2W005A240V-0P7-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

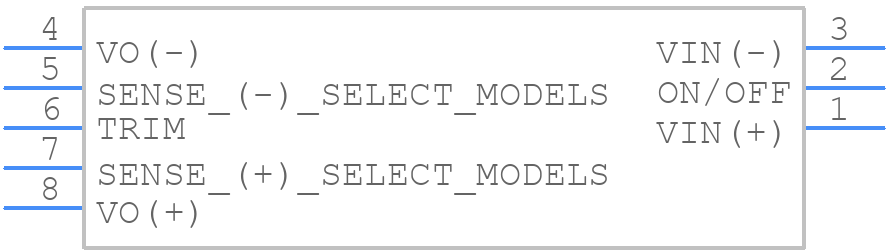

Symbol
GQA2W005A240V-0P7-R - TDK Lambda - PCB symbol
click to zoom

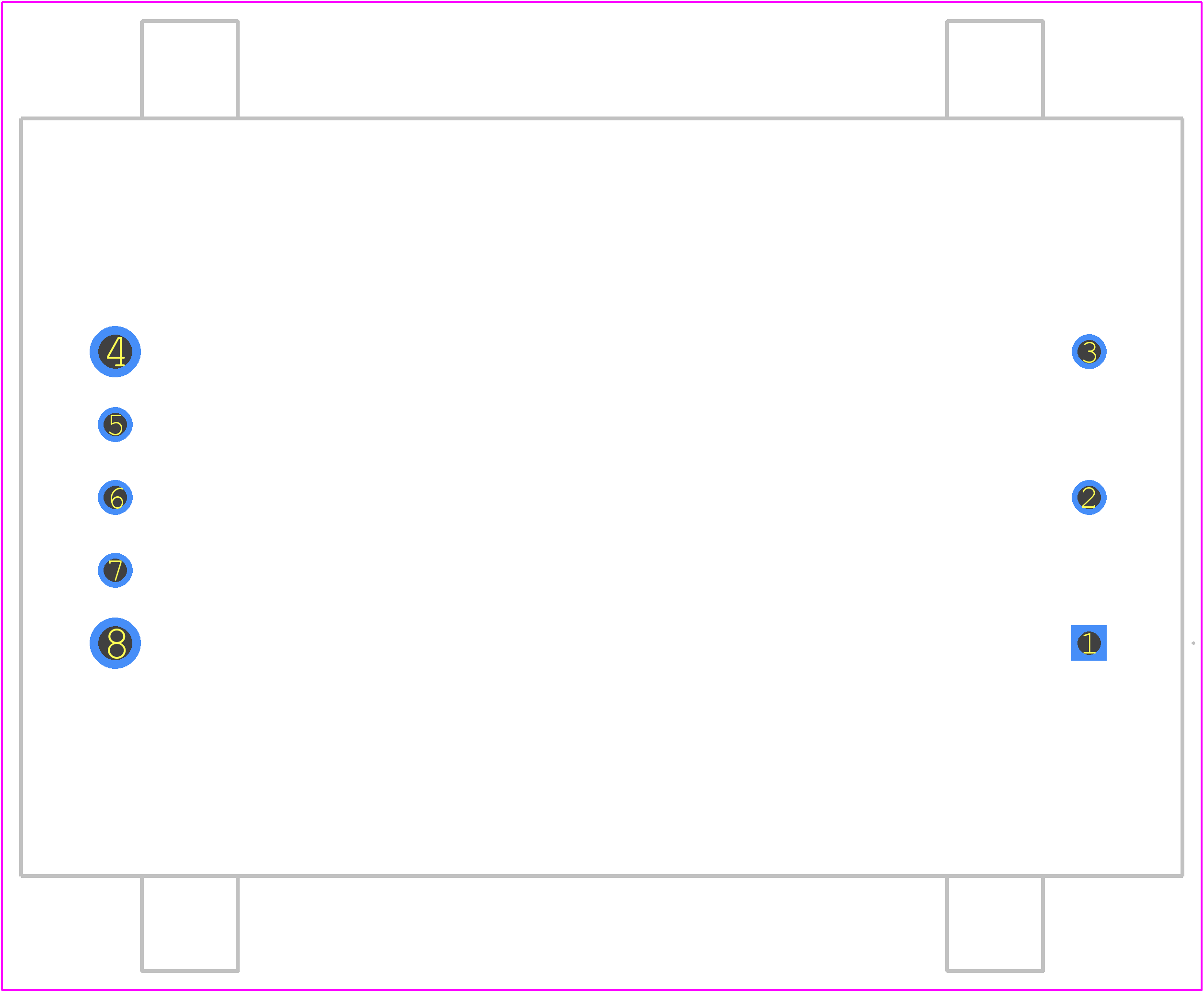

PCB Footprints
GQA2W005A240V-0P7-R - TDK Lambda PCB footprint - Other - Other - GQA2W005A240V-0P7-R-1
click to zoom
3D Models
GQA2W005A240V-0P7-R - TDK Lambda - 3D model - Other - GQA2W005A240V-0P7-R-1
click to zoom

GQA2W005A240V-0P7-R Details

  • Manufacturer Part Number:

    GQA2W005A240V-0P7-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

GQA2W005A240V-0P7-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the GQA2W005A240V-0P7-R is -20°C to +80°C, with a derating of 2.5% per °C above 60°C.
  • The GQA2W005A240V-0P7-R requires a minimum airflow of 10CFM to ensure proper cooling. It is recommended to mount the module vertically and ensure a clearance of at least 1 inch around the module for airflow.
  • The recommended input voltage range for the GQA2W005A240V-0P7-R is 100-240VAC, with a tolerance of ±10%.
  • The GQA2W005A240V-0P7-R is designed to operate in a relative humidity range of 20-80% RH, non-condensing. For high-humidity environments, it is recommended to take additional precautions, such as conformal coating or potting, to ensure reliability.
  • The MTBF rating for the GQA2W005A240V-0P7-R is 550,000 hours, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GQA2W005A240V-0P7-R Overview

Use the download button to access the GQA2W005A240V-0P7-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GQA2W, or try a keyword search, such as Power Supply Modules
