GQA2W024A050V-007-R - TDK Lambda

Description: DC-DC Converters, Power module type (with baseplate), Output: 120W, 5V, Isolated type, Option: Flanged baseplate, Negative logic ON/OFF control

Download GQA2W024A050V-007-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

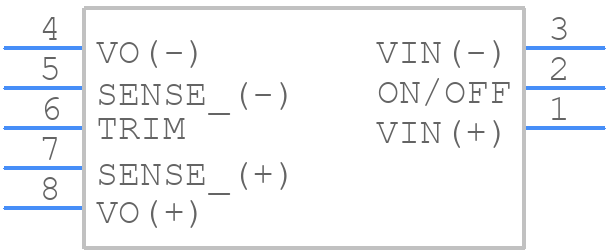

Symbol
GQA2W024A050V-007-R - TDK Lambda - PCB symbol
click to zoom

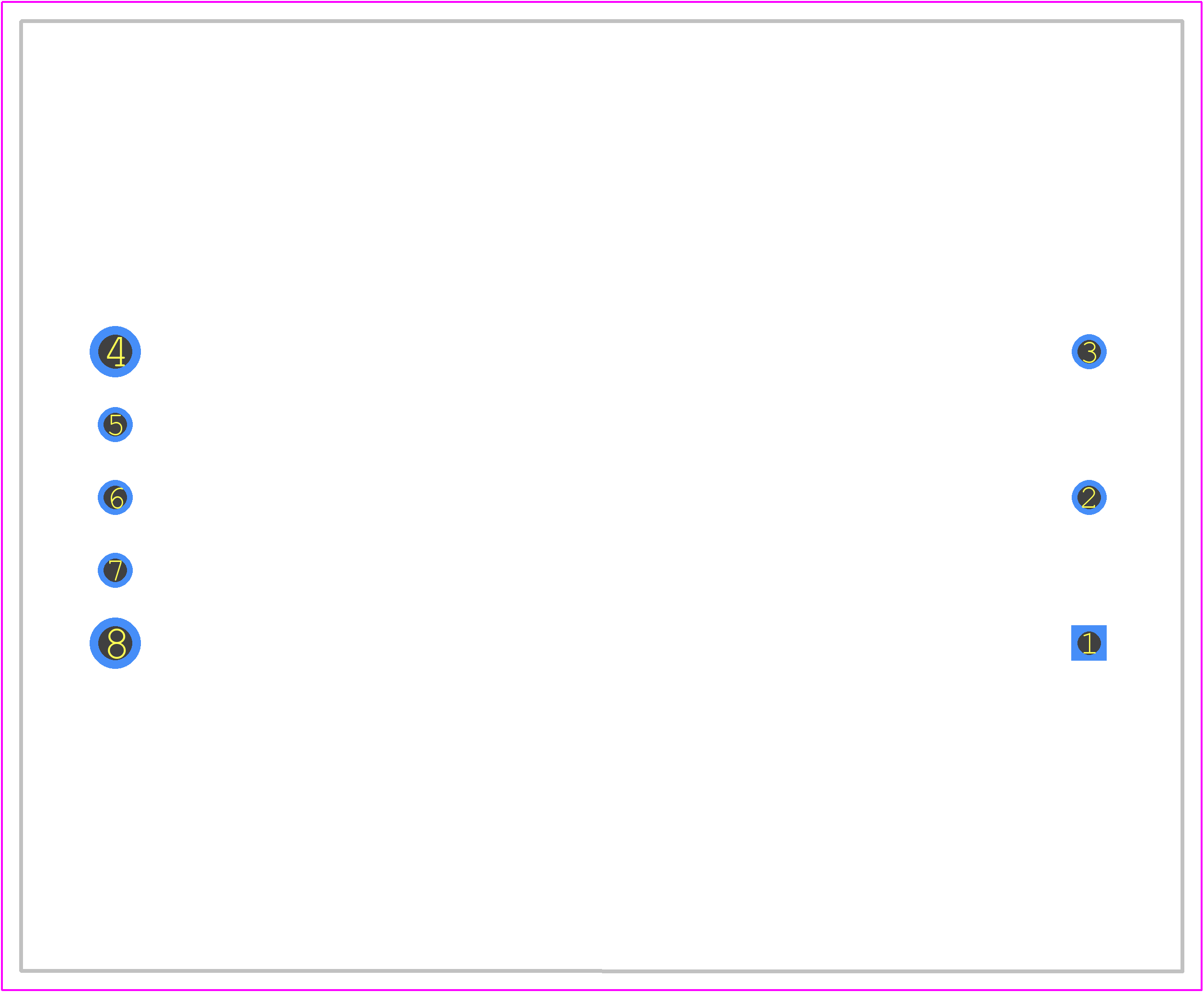

PCB Footprints
GQA2W024A050V-007-R - TDK Lambda PCB footprint - Other - Other - GQA2W024A050V-007-R-2
click to zoom
3D Models
GQA2W024A050V-007-R - TDK Lambda - 3D model - Other - GQA2W024A050V-007-R-2
click to zoom

GQA2W024A050V-007-R Details

  • Manufacturer Part Number:

    GQA2W024A050V-007-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • JESD-30 Code:

    R-XDFM-X8

  • Load Regulation-Max:

    0.03%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

GQA2W024A050V-007-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the GQA2W024A050V-007-R is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • Yes, the GQA2W024A050V-007-R power supply module is RoHS (Restriction of Hazardous Substances) compliant, meeting the requirements of the EU's 2011/65/EU directive.
  • The typical efficiency of the GQA2W024A050V-007-R power supply module is around 86% at full load, making it a high-efficiency power supply solution.
  • Yes, the GQA2W024A050V-007-R power supply module can be used in a redundant configuration, allowing for N+1 redundancy and hot-swapping of modules for high-availability applications.
  • The MTBF rating for the GQA2W024A050V-007-R power supply module is approximately 1.5 million hours, calculated according to MIL-HDBK-217F (Notice 2) at 40°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GQA2W024A050V-007-R Overview

Use the download button to access the GQA2W024A050V-007-R schematic symbol, PCB footprint, and 3D model.
