GR442QR73D331KW01L - Murata Electronics

Description: Multilayer Ceramic Capacitors MLCC - SMD/SMT 1808 330pF X7R 10%

Download GR442QR73D331KW01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GR442QR73D331KW01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

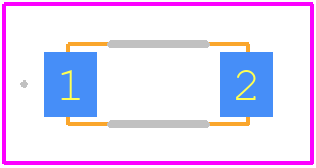

GR442QR73D331KW01L - Murata Electronics PCB footprint - Other - Other - GR442QR73D331KW01L-1
click to zoom
3D Models
GR442QR73D331KW01L - Murata Electronics - 3D model - Other - GR442QR73D331KW01L-1
click to zoom

GR442QR73D331KW01L Details

  • Manufacturer Part Number:

    GR442QR73D331KW01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.00033 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    1.5 mm

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    180mm Reel Embossed Tape

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    2000 V

  • Size Code:

    4520M/1808

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    2 mm

GR442QR73D331KW01L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the GR442QR73D331KW01L can be found in Murata's Capacitor Land Pattern document (PDF) or by contacting Murata's technical support.
  • The GR442QR73D331KW01L is a general-purpose capacitor, but it's not optimized for high-frequency applications. For high-frequency use, consider Murata's high-frequency capacitor series, such as the GRM155 or GRM219 series.
  • The GR442QR73D331KW01L is not AEC-Q200 qualified, which is a standard for automotive components. For automotive applications, consider Murata's AEC-Q200 qualified capacitors, such as the GRM155 or GRM219 series.
  • The GR442QR73D331KW01L has a maximum operating temperature range of -55°C to +125°C, but derating may be necessary for temperatures above 85°C. Consult the datasheet for specific derating information.
  • The GR442QR73D331KW01L is a surface-mount capacitor, and its vibration resistance is not explicitly stated in the datasheet. For high-vibration environments, consider using a capacitor with a more robust design, such as a radial-lead or screw-terminal capacitor.
